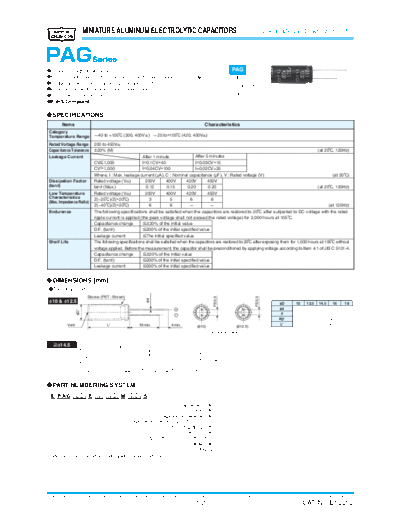

Image preview - the first page of the document
UCC [snap-in] PAG series


>> Download UCC [snap-in] PAG series documenatation <<

Text preview - extract from the document
                               MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS                                                                                                  200 to 450Vdc, Downsized, 105




  Downsize, high ripple design ( 10 to 18)                                                                                                       PAG
  Rated voltage range : 200 to 450Vdc., Capacitance range : 18 to 560 F
  Endurance with ripple current : 2,000 hours at 105                                                                                                   Downsized
                                                                                                                                                       Higher ripple
  Ideal for low profile power supply applications
  Non solvent resistant type                                                                                                                      KMG

  RoHS Compliant

    SPECIFICATIONS
             Items                                                                                                         Characteristics
 Category
 Temperature Range                      -40 to +105               (200, 400Vdc) -25 to+105               (420, 450Vdc)

 Rated Voltage Range                    200 to 450Vdc
 Capacitance Tolerance                   20% (M)                                                                                                                  (at 20 , 120Hz)
 Leakage Current                                                   After 1 minute                After 5 minutes
                                        CV 1,000                   I=0.1CV+40                    I=0.03CV+15
                                        CV>1,000                   I=0.04CV+100                  I=0.02CV+25
                                        Where, I : Max. leakage current (A), C : Nominal capacitance (F), V : Rated voltage (V)                                           (at 20 )
 Dissipation Factor                     Rated voltage (Vdc)          200V        400V       420V        450V
 (tan )                                 tan (Max.)                   0.12        0.15        0.20       0.20                                                      (at 20 , 120Hz)
 Low Temperature                        Rated voltage (Vdc)          200V        400V       420V        450V
 Characteristics                        Z(-25 )/Z(+20 )                3           5           6          6
 (Max. Impedance Ratio)
                                        Z(-40 )/Z(+20 )                6           6          -          -                                                              (at 120Hz)
 Endurance                              The following specifications shall be satisfied when the capacitors are restored to 20 after subjected to DC voltage with the rated
                                        ripple current is applied (the peak voltage shall not exceed the rated voltage) for 2,000 hours at 105 .
                                        Capacitance change             20% of the initial value
                                        D.F. (tan )                  200% of the initial specified value
                                        Leakage current              The initial specified value
 Shelf Life                             The following specifications shall be satisfied when the capacitors are restored to 20 after exposing them for 1,000 hours at 105 without
                                        voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
                                        Capacitance change             20% of the initial value
                                        D.F. (tan )                  200% of the initial specified value
                                        Leakage current              500% of the initial specified value


    DIMENSIONS [mm]
    Terminal Code : E
                                   Sleeve (PET : Brown)
                                                                                                                                  F 0.5




                                                                                                                                                                   F 0.5
                                                                                      d




    10 & 12.5                                                                                                                                                                           D          10      12.5 14.5     16              18
                                                                                                                                                                                        d          0.6     0.6   0.8    0.8              0.8
                          D'




                                                                                                                                                                                       F           5.0     5.0   7.5    7.5              7.5
                                                                                                                                                                                       D'                      D+0.5 max.
                  Vent                            L'                             15min.          4min.                                                                                 L'                     L+2.0 max.
                                                                                                                     ( 10)                          ( 12.5)
                                                                                                                          Gas escape end seal

                                   Sleeve (PET : Brown)
                                                                                                                                 F 0.5
                                                                                     d




             14.5
                          D'




                  Vent                            L'                            15min.           4min.         ( 14.5 to 18)



    PART NUMBERING SYSTEM
    1    2    3   4   5    6   7    8    9   10   11   12   13   14   15   16   17   18

   E P AG AAA E AA AAA M AAA S
                                                                                                Supplement code
                                                                                                        Size code
                                                                                      Capacitance tolerance code
                                                                       Capacitance code (ex. 22F:220,100F:101)
                                                                                         Lead forming
