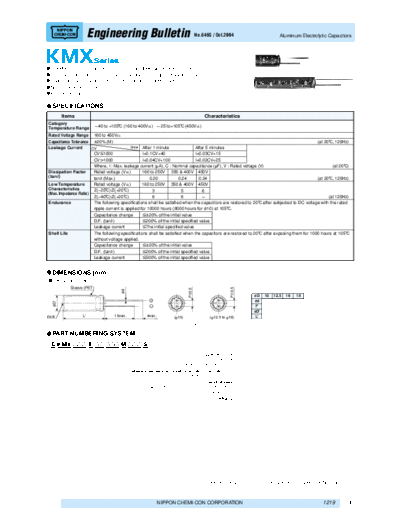

Image preview - the first page of the document
![UCC [radial thru-hole] KMX series](/pics/5c2d8af94ae1b.gif)
>> Download UCC [radial thru-hole] KMX series documenatation <<
Text preview - extract from the document
Engineering Bulletin No.646G / Oct.2004 Aluminum Electrolytic Capacitors
@Slender case sizes are lined up for laying down small places on PC board
@For electronic ballast circuits and other long life required applications
@Endurance with ripple current : 105C 8000 to 10000 hours
@Non solvent-proof type
@Pb-free design
?SPECIFICATIONS
Items Characteristics
Category
Temperature Range -40 to +105C (160 to 400Vdc) -25 to+105C (450Vdc)
Rated Voltage Range 160 to 450Vdc
Capacitance Tolerance P20% (M) (at 20C, 120Hz)
Leakage Current CV time After 1 minute After 5 minutes
CV[1000 I=0.1CV+40 I=0.03CV+15
CV>1000 I=0.04CV+100 I=0.02CV+25
Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V) (at 20C)
Dissipation Factor Rated voltage (Vdc) 160 to 250V 350 & 400V 450V
(tanE) tanE (Max.) 0.20 0.24 0.24 (at 20C, 120Hz)
Low Temperature Rated voltage (Vdc) 160 to 250V 350 & 400V 450V
Characteristics Z(-25C)/Z(+20C) 3 5 6
(Max. Impedance Ratio)
Z(-40C)/Z(+20C) 6 6 - (at 120Hz)
Endurance The following specifications shall be satisfied when the capacitors are restored to 20C after subjected to DC voltage with the rated
ripple current is applied for 10000 hours (8000 hours for F10) at 105C.
Capacitance change [P20% of the initial value
D.F. (tanE) [200% of the initial specified value
Leakage current [The initial specified value
Shelf Life The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 1000 hours at 105C
without voltage applied.
Capacitance change [P20% of the initial value
D.F. (tanE) [200% of the initial specified value
Leakage current [500% of the initial specified value
?DIMENSIONS [mm]
@Terminal Code : E
Sleeve (PET)
FP0.5
FP0.5
Fd
fD 10 12.5 16 18
fd 0.6 0.6 0.8 0.8
FD'
F 5.0 5.0 7.5 7.5
fD' FD+0.5max.
Vent L' 15min. 4min. (F10) (F12.5 to F18) L' L+1.5max.
Gas escaped end seal
?PART NUMBERING SYSTEM
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
E KMX A A A E A A A A A M A A A S
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex. 3.3MF:3R3,10MF:100,100MF:101)
Lead forming◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
