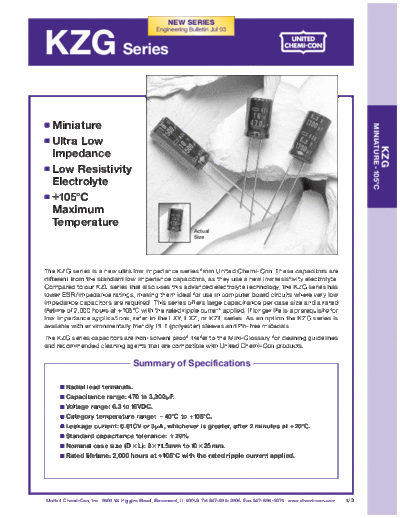

Image preview - the first page of the document



>> Download UCC [radial thru-hole] KZG series documenatation <<

Text preview - extract from the document

                                                NEW SERIES
                                           Engineering Bulletin Jul 03


KZG Series

  Miniature




                                                                                                                             MINIATURE -105 C
  Ultra Low




                                                                                                                                                KZG
  Impedance
  Low Resistivity
  Electrolyte
   105 C
  Maximum
  Temperature
                                                          Actual
                                                          Size




The KZG series is a new ultra low impedance series from United Chemi-Con. These capacitors are
different from the standard low impedance capacitors, as they use a new low resistivity electrolyte.
Compared to our KZE series that also uses this advanced electrolyte technology, the KZG series has
lower ESR /impedance ratings, making them ideal for use in computer board circuits where very low
impedance capacitors are required. This series offers large capacitance per case size and a rated
lifetime of 2,000 hours at 105 C with the rated ripple current applied. If longer life is a prerequisite for
low impedance applications, refer to the LXY, LXZ, or KZE series. As an option the KZG series is
available with environmentally friendly PET (polyester) sleeves and Pb-free materials.
The KZG series capacitors are non-solvent proof. Refer to the Mini-Glossary for cleaning guidelines
and recommended cleaning agents that are compatible with United Chemi-Con products.

                                  Summary of Specifications

       Radial lead terminals.
       Capacitance range: 470 to 3,300
