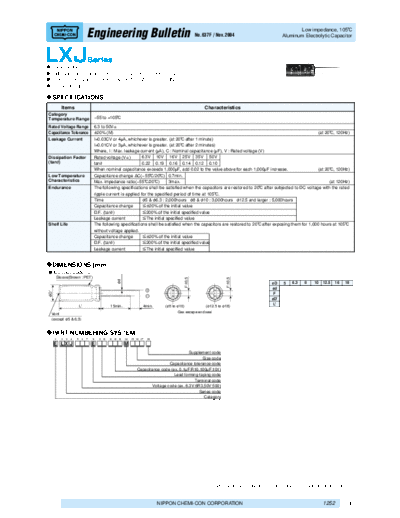

Image preview - the first page of the document
![UCC [radial thru-hole] LXJ series](/pics/5c2d8b297e64e.gif)
>> Download UCC [radial thru-hole] LXJ series documenatation <<
Text preview - extract from the document
Engineering Bulletin No.637F / Nov.2004
Low impedance, 105C
Aluminum Electrolytic Capacitor
@Low impedance
@Endurance with ripple current: 105C 2,000 to 5,000 hours
@Solvent-proof type (see PRECAUTIONS AND GUIDELINES)
@Pb-free design
?SPECIFICATIONS
Items Characteristics
Category
Temperature Range -55 to +105C
Rated Voltage Range 6.3 to 50Vdc
Capacitance Tolerance P20% (M) (at 20C, 120Hz)
Leakage Current I=0.03CV or 4MA, whichever is greater. (at 20C after 1 minute)
I=0.01CV or 3MA, whichever is greater. (at 20C after 2 minutes)
Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V)
Dissipation Factor Rated voltage (Vdc) 6.3V 10V 16V 25V 35V 50V
(tane) tanE 0.22 0.19 0.16 0.14 0.12 0.10
When nominal capacitance exceeds 1,000MF, add 0.02 to the value above for each 1,000MF increase. (at 20C, 120Hz)
Low Temperature Capacitance change DC(-55C/20C) 0.7min.
Characteristics Max. impedance ratio(-55C/20C)) 3max. (at 120Hz)
Endurance The following specifications shall be satisfied when the capacitors are restored to 20C after subjected to DC voltage with the rated
ripple current is applied for the specified period of time at 105C.
Time F5 & F6.3 : 2,000hours F8 & F10 : 3,000hours F12.5 and larger : 5,000hours
Capacitance change [P20% of the initial value
D.F. (tanE) [200% of the initial specified value
Leakage current [The initial specified value
Shelf Life The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 1,000 hours at 105C
without voltage applied.
Capacitance change [P20% of the initial value
D.F. (tanE) [200% of the initial specified value
Leakage current [The initial specified value
?DIMENSIONS [mm]
@Terminal Code : E
Sleeve(Brown : PET)
FP0.5
FP0.5
Fd
fD 5 6.3 8 10 12.5 16 18
fd 0.5 0.5 0.6 0.6 0.6 0.8 0.8
FD'
F 2.0 2.5 3.5 5.0 5.0 7.5 7.5
fD' FD+0.5max.
L' 15min. 4min. L' L+1.5max.
(F5 to F10) (F12.5 to F18)
Gas escape end seal
Vent
(except F5 & 6.3)
?PART NUMBERING SYSTEM
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
E L X J AAA E AA AAA M AAA N
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex. 0.1MF:R10,100MF:101)
