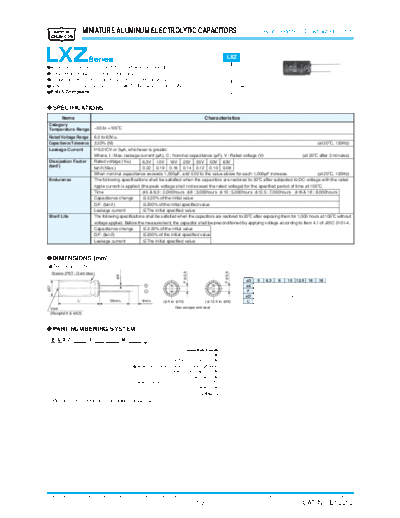

Image preview - the first page of the document
![UCC [radial thru-hole] LXZ series](/pics/5c2d8b30ec809.gif)
>> Download UCC [radial thru-hole] LXZ series documenatation <<
Text preview - extract from the document
MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS Low impedance, Downsized, 105
LXZ
Adoption of innovative electrolyte and new technologies Lower Z
Downsized
Very low impedance at high frequency
LXY
Endurance with ripple current: 2,000 to 8,000 hours at 105
Solvent resistant type (see PRECAUTIONS AND GUIDELINES) Lower Z
RoHS Compliant LXV
SPECIFICATIONS
Items Characteristics
Category
Temperature Range -55 to +105
Rated Voltage Range 6.3 to 63Vdc
Capacitance Tolerance 20% (M) (at 20 , 120Hz)
Leakage Current I=0.01CV or 3 A, whichever is greater.
Where, I : Max. leakage current ( A), C : Nominal capacitance ( F), V : Rated voltage (V) (at 20 after 2 minutes)
Dissipation Factor Rated voltage (Vdc) 6.3V 10V 16V 25V 35V 50V 63V
(tan ) tan (Max.) 0.22 0.19 0.16 0.14 0.12 0.10 0.08
When nominal capacitance exceeds 1,000 F, add 0.02 to the value above for each 1,000 F increase. (at 20 , 120Hz)
Endurance The following specifications shall be satisfied when the capacitors are restored to 20 after subjected to DC voltage with the rated
ripple current is applied (the peak voltage shall not exceed the rated voltage) for the specified period of time at 105 .
Time 5 & 6.3 : 2,000hours 8 : 3,000hours 10 : 5,000hours 12.5 : 7,000hours 16 & 18 : 8,000hours
Capacitance change 20% of the initial value
D.F. (tan ) 200% of the initial specified value
Leakage current The initial specified value
Shelf Life The following specifications shall be satisfied when the capacitors are restored to 20 after exposing them for 1,000 hours at 105 without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Capacitance change 20% of the initial value
D.F. (tan ) 200% of the initial specified value
Leakage current The initial specified value
DIMENSIONS [mm]
Terminal Code : E
F 0.5
F 0.5
Sleeve (PET : Dark blue)
d
D 5 6.3 8 10 12.5 16 18
d 0.5 0.5 0.6 0.6 0.6 0.8 0.8
D'
F 2.0 2.5 3.5 5.0 5.0 7.5 7.5
D' D+0.5max.
L' 15min. 4min. ( 5 to 10) ( 12.5 to 18) L' L+1.5max.
Vent Gas escape end seal
(Except 5 & 6.3)
PART NUMBERING SYSTEM
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
E LXZ E M
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex. 150 F:151, 2,200 F:222)
