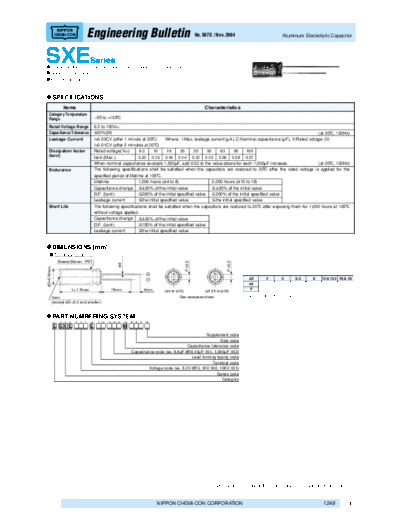

Image preview - the first page of the document
![UCC [radial thru-hole] SXE series](/pics/5c2d8b36b1aa1.gif)
>> Download UCC [radial thru-hole] SXE series documenatation <<
Text preview - extract from the document
Engineering Bulletin No.507D / Nov.2004 Aluminum Electrolytic Capacitor
@Low impedance capacitors, operating temperature range from -55 to 105C
@Solvent-proof type
@Pb-free design
?SPECIFICATIONS
Items Characteristics
Category Temperature
Range -55 to +105C
Rated Voltage Range 6.3 to 100Vdc
Capacitance Tolerance P20%(M) (at 20C, 120Hz)
Leakage Current I=0.03CV (after 1 minute at 20C) Where: I:Max. leakage current (MA), C:Nominal capacitance (MF), V:Rated voltage (V)
I=0.01CV (after 2 minutes at 20C)
Dissipation factor Rated voltage(Vdc) 6.3 10 16 25 35 50 63 80 100
(tane) tanE (Max.) 0.22 0.19 0.16 0.14 0.12 0.10 0.08 0.08 0.07
When nominal capacitance exceeds 1,000MF, add 0.02 to the value above for each 1,000MF increase. (at 20C, 120Hz)
Endurance The following specifications shall be satisfied when the capacitors are restored to 20C after the rated voltage is applied for the
specified period of lifetime at 105C.
Lifetime 1,000 hours (F4 to 8) 2,000 hours (F10 to 18)
Capacitance change [P20% of the initial value [P20% of the initial value
D.F. (tanE) [200% of the initial specified value [200% of the initial specified value
Leakage current [the initial specified value [the initial specified value
Shelf Life The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 1,000 hours at 105C
without voltage applied.
Capacitance change [P20% of the initial value
D.F. (tanE) [150% of the initial specified value
Leakage current [the initial specified value
?DIMENSIONS [mm]
@Terminal Code : E
Sleeve(Brown : PET)
FP0.5
FP0.5
Fd
FD+0.5max.
fD 4 5 6.3 8 10 & 12.5 16 & 18
fd 0.45 0.5* 0.5* 0.6 0.6 0.8
L+1.5max. 15min. 4min. (F4 to F10) (F12.5 to F18) F 1.5 2.0 2.5 3.5 5.0 7.5
Vent Gas escape end seal *For L=7mm, Fd is 0.45
(except FD=6.3 and smaller)
?PART NUMBERING SYSTEM
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
E SXE AAA E AA AAA M AAA N
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex. 6.8MF:6R8,10MF:101, 1,000MF:102)
Lead forming◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
