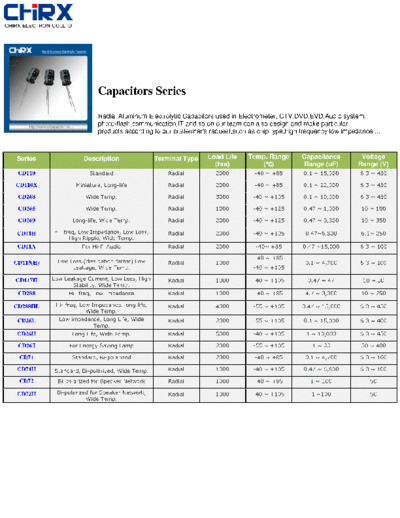

Image preview - the first page of the document
>> Download Chirx Series Table documenatation <<
Text preview - extract from the document
Capacitors Series
Radial Aluminum Electrolytic Capacitors used in Electrometer, CTV,DVD,EVD,Audio system,
photo-flash,communication,IT and so on.our team can also design and make particular
products according to our custermer's request,such as chip type,high frequency low impedance ...
Series Description Terminal Type Load Life Temp. Range Capacitance Voltage
(hrs) () Range (uF) Range (V)
CD110 Standard Radial 2000 -40 ~ +85 0.1 ~ 15,000 6.3 ~ 450
CD110X Miniature, Long-life Radial 2000 -40 ~ +85 0.1 ~ 22,000 6.3 ~ 450
CD268 Wide Temp. Radial 3000 -40 ~ +105 0.1 ~ 10,000 6.3 ~ 450
CD265 Wide Temp. Radial 1000 -40 ~ +125 0.47 ~ 1,000 10 ~ 100
CD269 Long-life, Wide Temp. Radial 2000 -40 ~ +125 0.47 ~ 3,300 10 ~ 350
CD11H Hi- freq, Low Impedance, Low Loss, Radial 2000 -40 ~ +105 0.47~6,800 6.3~ 250
High Ripple, Wide Temp.
CD11A For Hi-Fi Audio Radial 2000 -40~ +85 0.47 ~15,000 6.3 ~ 100
-40 ~ +85
CD113(H) Low Loss (dissipation factor) Low Radial 1000 0.1 ~ 4,700 6.3 ~ 100
Leakage, Wide Temp. -40 ~ +105
CD117H Low Leakage Current, Low Loss, High Radial 1000 -40 ~ +105 0.47 ~ 47 10 ~ 50
Stability, Wide Temp.
CD288 Hi- freq, Low Impedance Radial 1000 -40 ~ +85 4.7 ~ 3,300 10 ~ 250
CD288HL Hi- freq, Low Impedance, long life, Radial 4000 -55 ~ +105 0.47 ~ 15,000 6.3 ~ 450
Wide Temp.
CD26L Low impedance, Long Life, Wide Radial 2000 -55 ~ +105 0.1 ~ 15,000 6.3 ~ 400
Temp.
CD26H Long Life, Wide Temp. Radial 5000 -40 ~ +105 1 ~ 10,000 6.3 ~ 450
CD26J For Energy Saving Lamp Radial 2000 -55 ~ +105 1 ~ 33 50 ~ 400
CD71 Standard, Bi-polarized Radial 2000 -40 ~ +85 0.1 ~ 4,700 6.3 ~ 160
CD71H Standard, Bi-polarized, Wide Temp. Radial 1000 -40 ~ +105 0.47 ~ 6,800 6.3 ~ 100
CD72 Bi-polarized for Speaker Network Radial 1000 -40 ~ +85 1 ~ 100 50
CD72H Bi-polarized for Speaker Network, Radial 1000 -40 ~ +105 1 ~100 50
Wide Temp.
