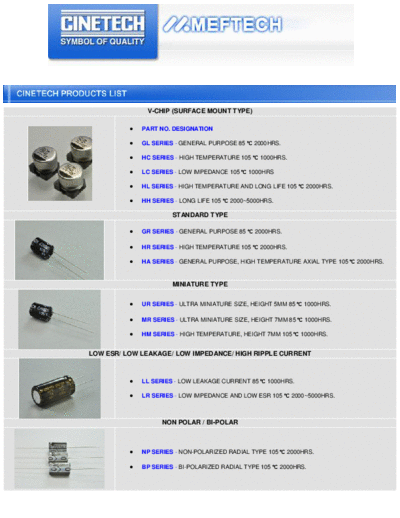

Image preview - the first page of the document



>> Download Cinetech Series Table documenatation <<

Text preview - extract from the document

              V-CHIP (SURFACE MOUNT TYPE)

             PART NO. DESIGNATION

             GL SERIES - GENERAL PURPOSE 85  2000HRS.

             HC SERIES - HIGH TEMPERATURE 105  1000HRS.

             LC SERIES - LOW IMPEDANCE 105  1000HRS

             HL SERIES - HIGH TEMPERATURE AND LONG LIFE 105  2000HRS.

             HH SERIES - LONG LIFE 105  2000~5000HRS.

                      STANDARD TYPE

             GR SERIES - GENERAL PURPOSE 85  2000HRS.

             HR SERIES - HIGH TEMPERATURE 105  2000HRS.

             HA SERIES - GENERAL PURPOSE, HIGH TEMPERATURE AXIAL TYPE 105  2000HRS.


                      MINIATURE TYPE


             UR SERIES - ULTRA MINIATURE SIZE, HEIGHT 5MM 85  1000HRS.

             MR SERIES - ULTRA MINIATURE SIZE, HEIGHT 7MM 85  1000HRS.

             HM SERIES - HIGH TEMPERATURE, HEIGHT 7MM 105  1000HRS.


LOW ESR/ LOW LEAKAGE/ LOW IMPEDANCE/ HIGH RIPPLE CURRENT



             LL SERIES - LOW LEAKAGE CURRENT 85  1000HRS.

             LR SERIES - LOW IMPEDANCE AND LOW ESR 105  2000~5000HRS.



                   NON POLAR / BI-POLAR



             NP SERIES - NON-POLARIZED RADIAL TYPE 105  2000HRS.

             BP SERIES - BI-POLARIZED RADIAL TYPE 105  2000HRS.
HIGH RIPPLE CURRENT / HIGH RELIABILITY


   RC SERIES - HIGH RIPPLE CURRENT 105  3000~6000HRS.

   LB SERIES - LONG LIFE FOR BALLAST 105  3000~5000HRS.

   LF SERIES - LONG LIFE FOR BALLAST AND ENERGY SAVE LAMP 105  8000~10000HRS.


        SNAP-IN TERMINAL TYPE


   SN SERIES - PCB SNAP-IN TERMINAL 85  2000HRS.

   HS SERIES - HIGH TEMPERATURE PCB SNAP-IN TERMINAL 105  2000HRS.

   SL SERIES - SNAP-IN LONG LIFE 105  5000HRS.


              SCREW TYPE



   ST SERIES - SCREW TERMINAL TYPE 85  2000HRS.

   HT SERIES - SCREW TYPE 105  2000HRS.
