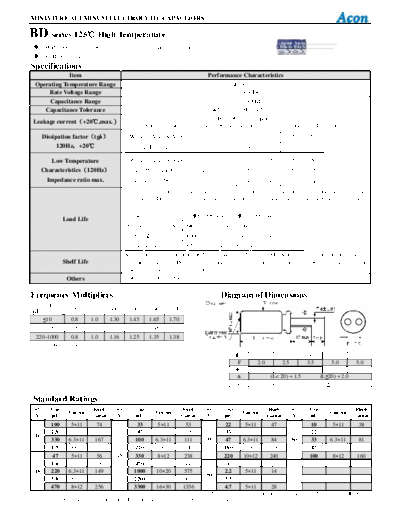

Image preview - the first page of the document



>> Download Acon [radial thru-hole] BD Series documenatation <<

Text preview - extract from the document

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

BD series 125 High Temperature
 Wide operating temperature rang, it as long load life product at 125.
 RoHs Compliant
Specifications
             Item                                                                Performance Characteristics
 Operating Temperature Range                                                               -40~+125
     Rate Voltage Range                                                                    6.3~50VDC
     Capacitance Range                                                                    0.47~3900F
    Capacitance Tolerance
