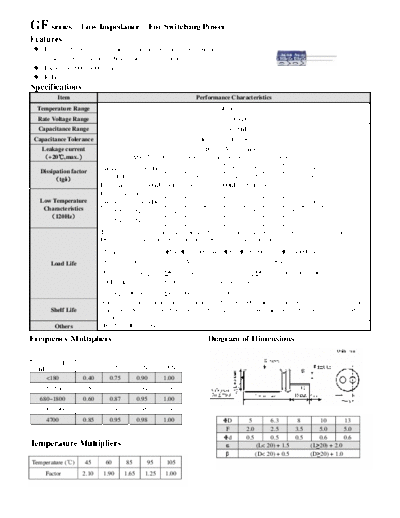

Image preview - the first page of the document



>> Download Acon [radial thru-hole] GF Series documenatation <<

Text preview - extract from the document

GF series           Low Impedance For Switching Power
Features
 Low impedance for high frequency. Used in communication equipments ,
    switching power supply, industrial measuring instruments, etc.
 Endurance:2000 ~4000 hours at 105
 RoHs Compliant
Specifications
         Item                                                    Performance Characteristics
  Temperature Range                                                         -40~+105
  Rate Voltage Range                                                        6.3~100VDC
  Capacitance Range                                                         15~4700F
 Capacitance Tolerance
