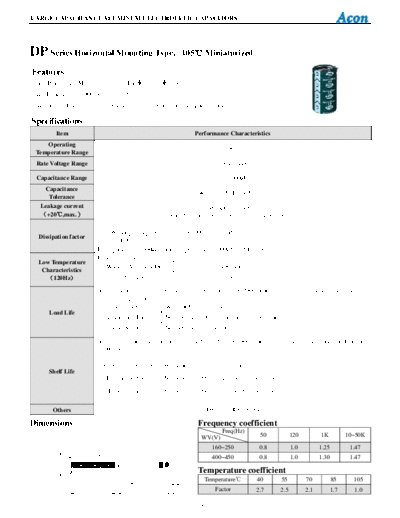

Image preview - the first page of the document
Acon [snap-in] DP Series


>> Download Acon [snap-in] DP Series documenatation <<

Text preview - extract from the document
LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS




DP Series Horizontal Mounting Type105 Miniaturized
 Features
  u Horizontal Mounting version for 22 and 25.4
   u Load Life2000 hours at 105
   u Suited for use in flat electronic devices where height space is limited

Specifications
           Item                                                        Performance Characteristics
     Operating
                                                                               -25~+105
  Temperature Range
  Rate Voltage Range                                                          160~450VDC

   Capacitance Range                                                           68~1000F
      Capacitance
