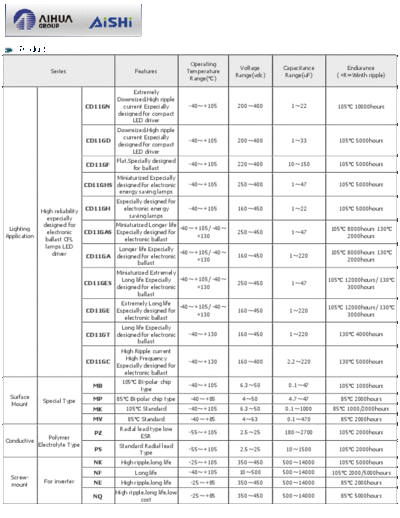

Image preview - the first page of the document
>> Download Aishi Series Table documenatation <<
Text preview - extract from the document
Product
Operating
Voltage Capacitance Endurance
Series Features Temperature
Range(vdc) Range(uF) (+R=Winth ripple)
Range()
Extremely
Downsized,High ripple
CD11GN current Especially -40+105 200400 122 105 10000hours
designed for compact
LED driver
Downsized,High ripple
current Especially
CD11GD -40+105 200400 133 105 5000hours
designed for compact
LED driver
Flat,Specially designed
CD11GF -40+105 220400 10150 105 5000hours
for ballast
Miniaturized Especially
CD11GHS designed for electronic -40+105 250400 147 105 5000hours
energy saving lamps
Especially designed for
High reliability CD11GH electronic energy -40+105 160450 122 105 5000hours
especially saving lamps
designed for Miniaturized Longer life
Lighting -40+105/ -40 105 8000hours 130
electronic CD11GAS Especially designed for 250450 147
Application +130 2000hours
ballast CFL electronic ballast
lamps LED Longer life Especially
driver -40+105/ -40 105 8000hours 130
CD11GA designed for electronic 160450 1220
+130 2000hours
ballast
Miniaturized Extremely
Long life Especially -40+105/ -40 105 12000hours/ 130
CD11GES 250450 147
designed for electronic +130 3000hours
ballast
Extremely Long life
-40+105/ -40 105 12000hours/ 130
CD11GE Especially designed for 160450 1220
+130 3000hours
electronic ballast
Long life Especially
CD11GT designed for electronic -40+130 160450 1220 130 4000hours
ballast
High Ripple current
High Frequency
CD11GC -40+130 160400 2.2220 130 5000hours
Especially designed for
electronic ballast
105 Bi-polar chip
MB -40+105 6.350 0.147 105 1000hours
type
Surface MP 85 Bi-polar chip type -40+85 450 4.747 85 2000hours
Special Type
Mount
MK 105 Standard -40+105 6.350 0.11000 85 1000/2000hours
MV 85 Standard -40+85 463 0.1470 85 2000hours
Radial lead type low
PZ -55+105 2.525 1802700 105 2000hours
Polymer ESR
Conductive
Electrolyte Type Standard Radial lead
PS -55+105 2.525 101500 105 2000hours
Type
NK High ripple,long life -25+105 350450 50014000 105 5000hours
NF Long life -40+105 10500 50014000 105 2000/5000hours
Screw-
For inverter NE High ripple,long life -25+85 350450 50014000 85 2000hours
mount
High ripple,long life,low
NQ -25+85 350450 50014000 85 5000hours
cost
NW High ripple current -25+85 350450 100012000 85 2000hours
High
NX ripple,downsized,long -25+85 350450 100018000 85 5000hours
life
-25+105/ -40 160400/ 10 18027000/ 1800 85 2000hours 105
NS Screw terminal,general
Screw- General +105 100 68000 2000hours
mount purpose -25+85/ -40 160450/ 10 27039000 68
NR Screw terminal,general 85 2000hours
+85 100 820000
No spark with DC over
LU -25+105 200&400 561200 105 2000hours
voltage Downsized
No spark with DC over
LF -25+105 200&400 681500 105 3000/5000hours
Snap-in & voltage
High reliability
Lug -40+105 10100 39047000 105 5000hours
LW Long life
LT Long life,down size -25+105 160450 822700 105 5000hours
LX Long life -25+105 160450 472200 105 7000hours
KX 55 For Photo Flash -20+55 330,360 1501500 5000 times
Snap-in terminal,more
LD -25+85 160450 823900 85 2000hours
downsized
Snap-in
Snap-in & General LS -25+85 160450 393300 85 3000hours
terminal,downsized
Lug Purpose
Snap-in
LM -25+105 160450 393300 105 2000/3000hours
terminal,downsized
LH 105Standard -40+105 10450 6847000 105 2000hours
LK 85 Standard -40+85 10450 6822000 85 2000hours
PF For Photo Flash -20+85 330 80330 5000 times
For TV Horizontal
BW -40+105 25100 133 105 1000hours
deflection
Miniature Special Type
NB High Reliability -40+130 10100 0.471000 130 1000hours
High Stability,Tantalum
FB -40+85 1650 0.47470 85 2000hours
Substitute
Low lmpedance for
RH -40+105 10450 0.474700 105 2000hours
high frequency
Low lmpedance,high
RR -40+105 6.350 226800 105 2000hours
ripple current
Low profile,Lowest
RL -40+105 6.335 0.471000 105 2000hours
lmpedance
"GBL"system,High
RG -55+105 6.350 1010000 105 2000-5000hours
High Frequency reliability
Miniature
Use Low impedance for
RE -40+105 6.3450 6.84700 105 2000-4000hours
high frequency
Lower impedance,high
RF -40+105 6.350 226800 105 3000-6000hours
ripple current
Lowest lmpedance,long
RS -40+105 6.3100 226800 105 4000-10000hours
life
Lowest lmpedance,long
RZ -40+105 6.350 2210000 105 6000-10000hours
life.downsized
RM Miniaturized,long life -25+105 10100 0.47330 105 10000hours
Downsized Long life,
HL -25+105 160450 10680 105 10000-12000hours
For Power Supply
Long life, For Power
HF -25+105 160450 1330 105 5000-10000hours
Supply
HS For Power Supply -25+105 160450 1220 105 3000-5000hours
Miniature High Reliability
No spark with DC over
RW -40+105 200450 4.7330 105 2000hours
voltage
