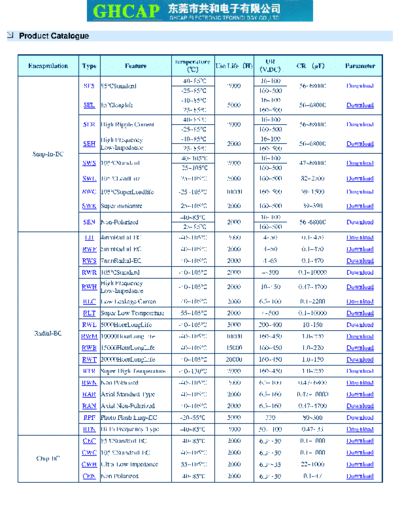

Product Catalogue
temperature UR
Encapsulation Type Feature Use LifeH) CR F Parameter
V.DC
-40~85 16~100
SES 85Standard 2000 56~68000 Download
-25~85 160~500
-40~85 16~100
SEL 85longlife 5000 56~68000 Download
-25~85 160~500
-40~85 16~100
SER High Ripple Current 2000 56~68000 Download
-25~85 160~500
High Frequency -40~85 16~100
SEH 2000 56~68000 Download
Low-Impedance -25~85 160~500
Snap-In-EC
-40~105 16~100
SWS 105Standard 2000 47~68000 Download
-25~105 160~500
SWL 105LoadLife -25~105 5000 160~500 82~2700 Download
SWC 105SuperLoadlife -25~105 10000 160~500 39~1500 Download
SWK Super miniature -25~105 2000 160~500 39~390 Download
-40~85 16~100
SEN Non-Polarized 2000 56~68000 Download
-25~85 160~500
LH 4mmRadial-EC -40~105 2000 4~50 0.1~470 Download
RWF 5mmRadial-EC -40~105 2000 4~50 0.1~470 Download
RWS 7mmRadial-EC -40~105 2000 4~63 0.1~470 Download
RWR 105Standard -40~105 2000 4~500 0.1~10000 Download
High Frequency
RWH -40~105 2000 10~450 0.47~4700 Download
Low-Impedance
RLC Low Leakage Current -40~105 2000 6.3~100 0.1~2200 Download
RLT Super Low Temperature -55~105 2000 4~500 0.1~10000 Download
RWL 5000HourLongLife -40~105 5000 200~400 10~150 Download
Radial-EC RWM 10000HourLongLife -40~105 10000 160~450 1.0~220 Download
RWB 15000HourLongLife -40~105 15000 160~450 1.0~220 Download
RWT 20000HourLongLife -40~105 20000 160~450 1.0~150 Download
RTR Super High Temperature -40~130 2000 160~450 1.0~220 Download
RWN Non-Polarized -40~105 2000 6.3~100 0.47~6800 Download
RAR Axial Standard Type -40~105 2000 6.3~160 0.47~10000 Download
RAN Axial Non-Polarized -40~105 2000 6.3~160 0.47~4700 Download
RPF Photo Flash lamp-EC -20~55 5000 330 80~300 Download
RFN Hi-Fi Frequency Type -40~85 2000 50100 0.47~33 Download
CEC 85Standard-EC -40~85 2000 6.350 0.1~1000 Download
CWC 105Standard-EC -40~105 2000 6.350 0.1~1000 Download
Chip-EC
CWH Ultra-Low Impedance -55~105 2000 6.335 22~1000 Download
CEN Non-Polarized -40~85 2000 6.350 0.1~47 Download
temperature UR
Encapsulation Type Feature Use LifeH)
V.DC CR F Parameter
BEB 85Standard -25~85 2000 16~600 100~680000 Download
BEL 85Loadlife -25~85 5000 400~550 1000~22000 Download
BEC Super Load life -25~85 20000 350~450 1000~15000 Download
BER High Ripple current -25~85 5000 400~450 1000~15000 Download
Screw-EC BEH High frequency low -25~85 2000 16~550 100~560000 Download
Impedance
FEF Super capacity -25~95 2000 10~25 500000~5000000 Download
BWB 105Standard -25~105 2000 160~500 180~22000 Download
BWL 105Loadlife -25~105 5000 350~450 1800~10000 Download
BEN Non-Polarized -25~85 2000 16~450 1000~22000 Download
