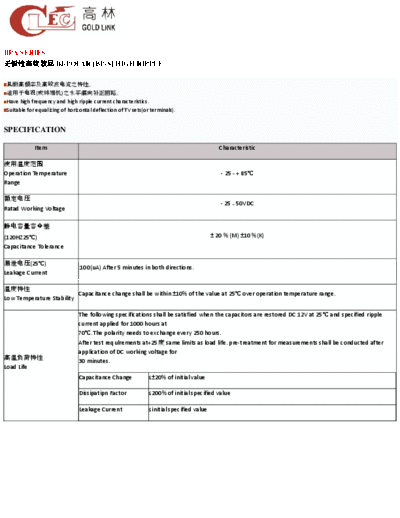

Image preview - the first page of the document



>> Download GL [bi-polar radial] BPA Series documenatation <<

Text preview - extract from the document

BPA SERIES
 BI-POLAR [BP-S] HIGH RIPPLE


()
Have high frequency and high ripple current characteristics.
Suitable for equalizing of horizontal deflection of TV sets(or terminals).


SPECIFICATION

            Item                                                                           Characteristic


Operation Temperature                                                                      - 25 ~ + 85
Range


                                                                                           - 25 ~ 50VDC
Ratad Working Voltage


(120HZ25)
