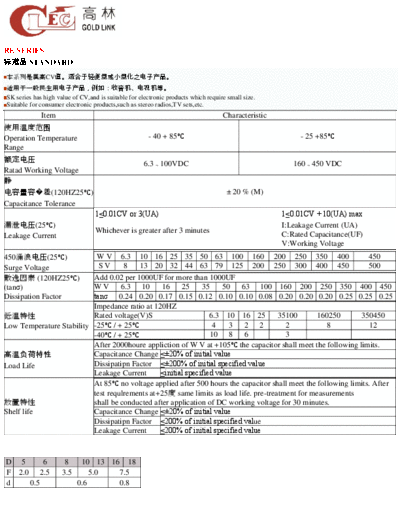

Image preview - the first page of the document
GL [radial] RE Series


>> Download GL [radial] RE Series documenatation <<

Text preview - extract from the document
RE SERIES
 STANDARD
CV

SK series has high value of CV,and is suitable for electronic products which require small size.
Suitable for consumer electronic products,such as stereo radios,TV sets,etc.
             Item                                                                  Characteristic

Operation Temperature                                 - 40 + 85                                              - 25 +85
Range
                                                     6.3 ~ 100VDC                                          160 ~ 450 VDC
Ratad Working Voltage

(120HZ25)
