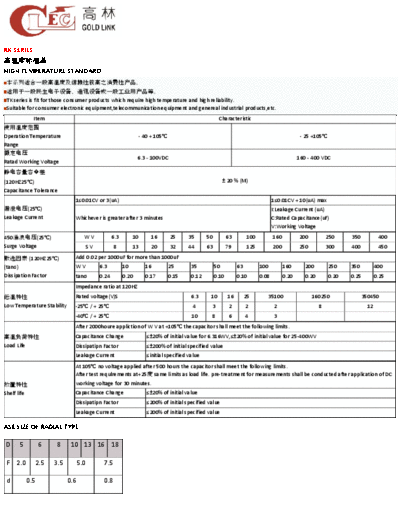

Image preview - the first page of the document



>> Download GL [radial] RK Series documenatation <<

Text preview - extract from the document

RK SERIES

HIGH TEMPERATURE STANDARD


 TK series is fit for those consumer products which require high temperature and high reliability.
 Suitable for consumer electronic equipment,telecommunication equipment and genereal industrial products,etc.
             Item                                                                               Characteristic

Operation Temperature                                         - 40 + 105                                                                   - 25 +105
Range

                                                           6.3 ~ 100VDC                                                                   160 ~ 400 VDC
Ratad Working Voltage

(120HZ25)
