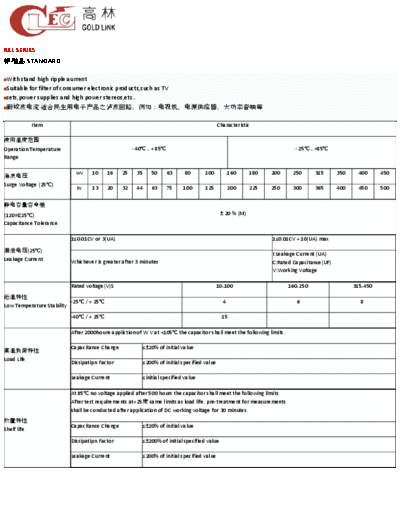

Image preview - the first page of the document



>> Download GL [snap-in] REL Series documenatation <<

Text preview - extract from the document

REL SERIES
 STANDARD

 With stand high ripple aurrent
 Suitable for filter of consumer electronic products,such as TV
 sets,power supplies and high power stereos,ets..


             Item                                                                      Characteristic


Operation Temperature                             - 40 ~ + 85                                                        - 25 ~ +85
Range

                          wv    10     16    25    35    50     63     80      100           160     180   200      250      315     350     400     450

Surge Voltage (25)
                          sv    13     20    32    44    63     75    100      125           200     225   250      300      365     400     450     500


(120HZ25)
