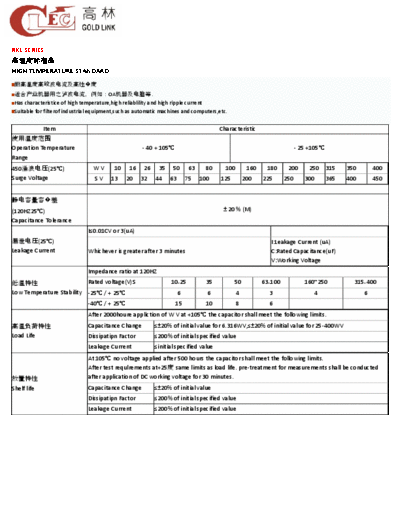

Image preview - the first page of the document



>> Download GL [snap-in] RKL Series documenatation <<

Text preview - extract from the document

RKL SERIES

HIGH TEMPERATURE STANDARD

 OA.
 Has characteristice of high temperature,high reliablility and high ripple current
 Suitable for filterof industrial equipment,such as automatic machines and computers,etc.


             Item                                                                     Characteristic

Operation Temperature                                - 40 + 105                                                         - 25 +105
Range
450(25)                          WV       10    16    26    35    50       63    80     100        160    180      200      250 315       350       400
Surge Voltage                     SV    13     20    32    44    63       75    100   125         200    225      250      300      365   400       450



(120HZ25)
