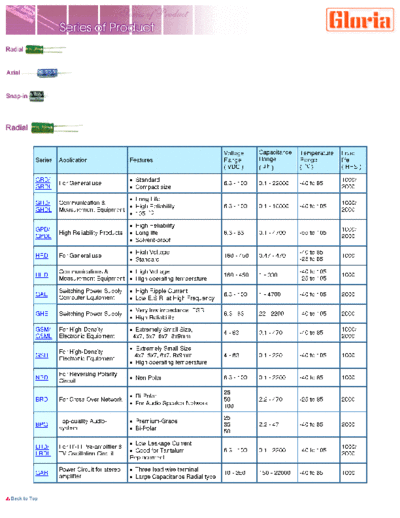

Image preview - the first page of the document
>> Download Gloria Series Table documenatation <<
Text preview - extract from the document
Voltage Capacitance Temperature Load
Series Application Features Range Range Range life
( VDC ) ( ) ( ) ( HRS )
GRD/ Standard 1000/
For General use 6.3 - 100 0.1 - 22000 -40 to 85
GRDL Compact size 2000
Long Life
GHD/ Communication & 1000/
High Reliability 6.3 - 100 0.1 - 10000 -40 to 105
GHDL Measurement Equipment 2000
105
High Reliability
GPD/ 1000/
High Reliability Products Long life 6.3 - 63 0.1 - 4700 -55 to 105
GPDL 2000
Solvent-proof
High Voltage -40 to 85
HRD For General use 160 - 450 0.47 - 470 1000
Standard -25 to 85
Communications & High Voltage -40 to 105
HHD 160 - 450 1 - 330 1000
Measurement Equipment High operating temperature -25 to 105
Switching Power Supply High Ripple Current
GAE 6.3 - 100 1 - 4700 -40 to 105 2000
Computer Equipment Low E.S.R. at High Frequency
Very low impedance, ESR
GHE Switching Power Supply 6.3 - 63 22 - 2200 -40 to 105 2000
High Reliability
GSM/ For High-Density Extremely Small Size, 1000/
4 - 63 0.1 - 470 -40 to 85
GSML Electronic Equipment 4x7, 5x7, 6x7, 8x9mm 2000
Extremely Small Size,
For High-Density
GSH 4x7, 5x7, 6x7, 8x9mm 4 - 63 0.1 - 220 -40 to 105 1000
Electronic Equipment
High operating temperature
For Reversing Polarity
NRD Non Polar 6.3 - 100 0.1 - 2200 -40 to 85 1000
Circuit
25
Bi-Polar
BRD For Cross Over Network 50 2.2 - 470 -25 to 85 2000
For Audio Speaker Network
100
25
Top-quality Audio- Premium-Grade
BPG 35 2.2 - 47 -40 to 85 2000
system Bi-Polar
50
Low Leakage Current
LRD/ For Hi-Fi Pre-amplifier & 1000/
Good for Tantalum 6.3 - 100 0.1 - 2200 -40 to 105
LRDL TV Oscillation Circuit 2000
Replacement
Power Circuit for stereo Three lead wire terminal
GAR 10 - 350 150 - 22000 -40 to 85 1000
amplifier Large Capacitance Radial type
Voltage Capacitance Temperature
Range Load life
Series Application Features Range Range
( HRS )
( VDC ) ( ) ( )
GAX/ Standard Low Voltage 1000/
For General use 6.3 - 100 0.1 - 22000 -40 to 85
GAXL Compact size 2000
HAX For General use Standard High Voltage 160 - 400 1 - 330 -40 to 85 1000
Communication &
AXH Measurement Long Life & High Reliability 6.3 - 100 0.1 - 4700 -40 to 105 1000
Equipment
Communication &
105 medium and high
HHA Measurement 160 - 450 1 - 300 -40 to 105 1000
voltage capacitors
Equipment
NAX/ For Reversing Polarity
Non Polar 6.3 - 100 0.1 - 2200 -40 to 85 1000
NBX Circuit
25
Bi-Polar
BAX For Cross Over Network 50 2.2 - 470 -25 to 85 2000
For Audio Speaker Network
100
Very low leakage current
LLA/ For Hi-Fi Pre-amplifiers 1000/
Can be used in time constant 6.3 - 100 0.1 - 4700 -40 to 85
LLAL & TV Oscillation Circuit 2000
circuit
Voltage Capacitance Temperature Load
Series Application Features Range Range Range life
( VDC ) ( ) ( ) ( HRS )
Low v.
3300 - 56000
High CV products
For Filter of Industrial Medium v. -40 to 85
GLY Long life 16 - 450 2000
Machines 220 - 2700 -40 to 85
High Reliability High v.
56 - 680
Low v.
High Ripple Current 1000 - 22000
Industrial Machines For
Low E.S.R. Medium v. -40 to 105
GHY Switching Supply Input 16 - 450 2000
and Output Filter With Excellent Stability & 150 - 1500 -25 to 105
Reliability High v.
47 - 680
JEENN CHWANQ ENTERPRISE CO., LTD
Aluminum Electrolytic Capacitors, since 1975
11F-1, B, No.93, Tashun 1st Rd, Kaohsiung Taiwan TEL: 886-7-7319008 FAX: 886-7-7315732
Email: [email protected]
