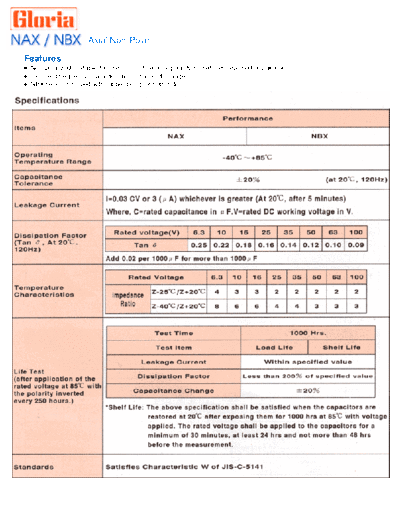

Image preview - the first page of the document
![Gloria [axial non-polar] NAX-NBX Series](/pics/5c1f4bf569275.gif)
>> Download Gloria [axial non-polar] NAX-NBX Series documenatation <<
Text preview - extract from the document
Axial Non-Polar
Features
Non-polarized, suitable for use in circuits whose polarity sometimes reversed or unknown.
Excellent frequency characteristics in the audio range.
NBX series is sealed with rubber bung for both sides.
Diagram of Dimensions Lead Spacing and Diameter
Internal Structure
Dimensions and Permissible Ripple Current
6.3 10 16 25 35 50 63 100
(8) (13) (20) (32) (44) (63) (79) (125)
DXL mA DXL mA DXL mA DXL mA DXL mA DXL mA DXL mA DXL mA
0.1 OR1 6.3 x 12 5 6.3 x 12 5 6.3 x 12 5
0.22 R22 6.3 x 12 7 6.3 x 12 8 6.3 x 12 8
0.33 R33 6.3 x 12 9 6.3 x 12 10 6.3 x 12 10
0.47 R47 6.3 x 12 10 6.3 x 12 12 6.3 x 12 12
1 010 6.3 x 12 16 6.3 x 12 18 6.3 x 12 18
2.2 2R2 6.3 x 12 23 6.3 x 12 27 6.3 x 12 27
3.3 3R3 6.3 x 12 29 6.3 x 12 31 6.3 x 14 35
4.7 4R7 6.3 x 12 34 6.3 x 14 40 8 x 13 42
10 100 6.3 x 12 46 6.3 x 14 54 6.3 x 14 59 8 x 16 69
22 220 6.3 x 12 61 6.3 x 16 69 6.3 x 14 74 8 x 16 89 10 x 17 97 10 x 21 120
33 330 6.3 x 12 71 6.3 x 12 80 8 x 13 85 8 x 16 101 8 x 16 109 10 x 21 139 13 x 22 153
47 470 8 x 13 85 8 x 13 95 8 x 16 113 8 x 16 120 10 x 17 152 10 x 21 174 13 x 22 203
100 101 6.3 x 16 118 8 x 13 147 8 x 16 155 10 x 17 192 10 x 21 205 10 x 21 232 13 x 22 269 16 x 27 317
220 221 8 x 16 195 8 x 16 254 10 x 17 268 10 x 21 298 13 x 22 338 13 x 27 381 16 x 27 447 16 x 37 501
330 331 8 x 16 239 10 x 17 312 10 x 21 344 13 x 22 387 13 x 27 433 16 x 27 500 16 x 33 567
470 471 10 x 17 333 10 x 21 389 13 x 22 436 13 x 27 483 16 x 27 552 16 x 33 618 18 x 42 792
1000 102 12 x 21 508 13 x 22 603 13 x 27 664 16 x 27 781 16 x 37 857 18 x 42 1054
2200 222 13 x 27 836 16 x 28 1000 16 x 37 1121 18 x 42 1355
Dimensions and Permissible Ripple Current
6.3 10 16 25 35 50 63 100
(8) (13) (20) (32) (44) (63) (79) (125)
DXL mA DXL mA DXL mA DXL mA DXL mA DXL mA DXL mA DXL mA
0.1 OR1 6.3 x 16 5 6.3 x 16 6 6.3 x 16 6
0.22 R22 6.3 x 16 8 6.3 x 16 9 6.3 x 16 9
0.33 R33 6.3 x 16 9 6.3 x 16 11 6.3 x 16 11
0.47 R47 6.3 x 16 11 6.3 x 16 13 6.3 x 16 13
1 010 6.3 x 16 17 6.3 x 16 19 6.3 x 16 19
2.2 2R2 6.3 x 16 25 6.3 x 16 27 6.3 x 16 29
3.3 3R3 6.3 x 16 31 6.3 x 19 35 6.3 x 19 37
4.7 4R7 6.3 x 16 34 6.3 x 19 38 6.3 x 19 42 6.3 x 19 44
10 100 6.3 x 16 50 6.3 x 19 56 6.3 x 19 62 8 x 20 73
22 220 6.3 x 16 65 6.3 x 19 72 6.3 x 19 77 8 x 20 94 8 x 20 103 10 x 21 125
33 330 6.3 x 16 76 6.3 x 19 84 6.3 x 19 89 8 x 20 106 8 x 20 115 10 x 21 146 10 x 25 160
47 470 6.3 x 16 81 6.3 x 19 90 6.3 x 19 100 8 x 20 119 8 x 20 127 10 x 21 159 10 x 25 181 13 x 27 203
100 101 6.3 x 19 124 8 x 20 155 8 x 20 164 10 x 21 200 10 x 21 214 10 x 25 241 13 x 27 282 16 x 33 329
220 221 8 x 20 206 10 x 21 266 10 x 21 281 10 x 25 310 13 x 27 353 13 x 32 397 16 x 33 463 16 x 42 517
330 331 8 x 20 252 10 x 21 326 10 x 25 358 13 x 27 405 13 x 32 450 16 x 33 518 16 x 38 586
470 471 10 x 21 348 10 x 25 406 13 x 27 455 13 x 32 503 16 x 33 572 16 x 38 639 18 x 47 814
1000 102 10 x 25 530 13 x 27 630 13 x 32 692 16 x 38 807 16 x 42 885 18 x 47 1084
2200 222 13 x 32 871 16 x 33 1036 16 x 42 1157 18 x 47 1393
JEENN CHWANQ ENTERPRISE CO., LTD
Aluminum Electrolytic Capacitors, since 1975
11F-1, B, No.93, Tashun 1st Rd, Kaohsiung Taiwan TEL: 886-7-7319008 FAX: 886-7-7315732
Email: [email protected]
