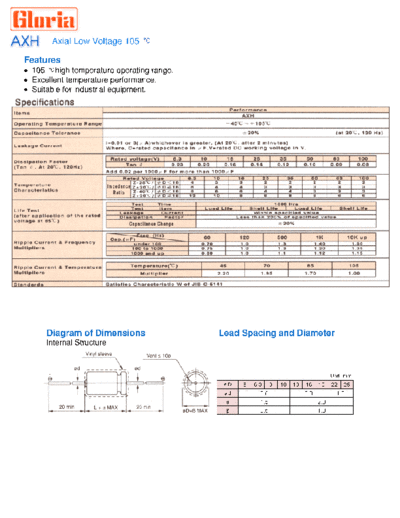

Image preview - the first page of the document
![Gloria [axial] AXH Series](/pics/5c1cb1e2a6ebd.gif)
>> Download Gloria [axial] AXH Series documenatation <<
Text preview - extract from the document
Axial Low Voltage 105
Features
105 high temperature operating range.
Excellent temperature performance.
Suitable for industrial equipment.
Diagram of Dimensions Lead Spacing and Diameter
Internal Structure
Dimensions and Permissible Ripple Current
6.3 10 16 25 35 50 63 100
(8) (13) (20) (32) (44) (63) (79) (125)
DXL mA DXL mA DXL mA DXL mA DXL mA DXL mA DXL mA DXL mA
0.1 OR1 5 x 12 2.0 5 x 12 3.0 5 x 12 3.0
0.22 R22 5 x 12 3.5 5 x 12 4.5 5 x 12 4.5
0.33 R33 5 x 12 5.0 5 x 12 7.5 5 x 12 7.5
0.47 R47 5 x 12 6.0 5 x 12 9.0 5 x 13 9.0
1 010 5 x 12 10 5 x 12 15 5 x 13 15
2.2 2R2 5 x 12 20 5 x 12 30 5 x 13 30
3.3 3R3 5 x 12 34 5 x 12 32 6.3 x 12 32
4.7 4R7 5 x 12 38 5 x 12 36 6.3 x 12 34
10 100 5 x 12 50 6.3 x 12 56 6.3 x 16 64
22 220 5 x 12 63 6.3 x 12 73 6.3 x 12 80 6.3 x 16 90 8 x 16 106
33 330 5 x 12 73 5 x 12 78 6.3 x 16 96 6.3 x 16 105 8 x 16 123 10 x 17 150
47 470 5 x 12 77 6.3 x 13 93 6.3 x 12 99 6.3 x 16 114 8 x 16 140 8 x 16 162 10 x 21 180
100 101 6.3 x 12 113 6.3 x 12 121 6.3 x 16 145 8 x 16 166 8 x 16 180 10 x 17 225 10 x 21 248 13 x 22 287
220 221 6.3 x 16 172 6.3 x 16 185 8 x 16 231 8 x 16 246 10 x 17 305 10 x 21 349 13 x 22 420 13 x 27 458
330 331 8 x 16 236 8 x 16 253 10 x 17 323 10 x 17 345 10 x 21 391 13 x 22 450 13 x 27 495 13 x 36 582
470 471 8 x 16 281 8 x 16 302 10 x 17 386 10 x 21 432 13 x 22 490 13 x 27 561 13 x 27 632 16 x 32 713
1000 102 10 x 17 453 10 x 17 486 10 x 21 569 13 x 22 662 13 x 27 721 16 x 33 875 18 x 37 984 18 x 40 1096
2200 222 13 x 22 740 13 x 22 7931 13 x 27 926 16 x 27 1024 16 x 37 1177 18 x 40 1408
3300 332 13 x 22 906 13 x 37 1015 16 x 27 1173 16 x 33 1300 16 x 40 1449 22 x 43 1724
4700 472 13 x 37 1168 16 x 27 1252 16 x 37 1442 18 x 42 1638 22 x 43 1878
JEENN CHWANQ ENTERPRISE CO., LTD
Aluminum Electrolytic Capacitors, since 1975
11F-1, B, No.93, Tashun 1st Rd, Kaohsiung Taiwan TEL: 886-7-7319008 FAX: 886-7-7315732
Email: [email protected]
