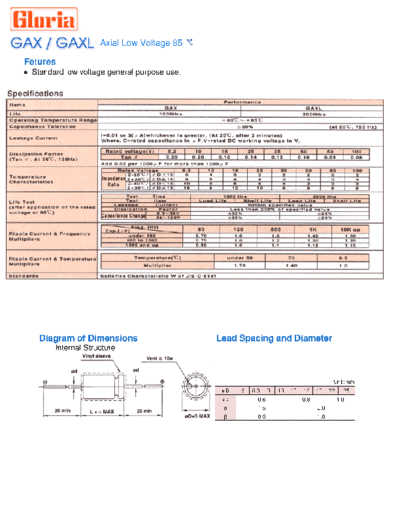

Image preview - the first page of the document
![Gloria [axial] GAX-GAXL Series](/pics/5c1cb438d4165.gif)
>> Download Gloria [axial] GAX-GAXL Series documenatation <<
Text preview - extract from the document
Axial Low Voltage 85
Fetures
Standard low voltage general purpose use.
Diagram of Dimensions Lead Spacing and Diameter
Internal Structure
Dimensions and Permissible Ripple Current
6.3 10 16 25 35 50 63 100
(8) (13) (20) (32) (44) (63) (79) (125)
DXL mA DXL mA DXL mA DXL mA DXL mA DXL mA DXL mA DXL mA
0.1 OR1 5 x 12 1.5 5 x 12 3.0 5 x 12 3.0
0.22 R22 5 x 12 3.5 5 x 12 4.5 5 x 12 4.5
0.33 R33 5 x 12 5.0 5 x 12 7.5 5 x 12 7.5
0.47 R47 5 x 12 6.0 5 x 13 9.0 5 x 13 9.0
1 010 5 x 13 10 5 x 13 15 5 x 13 15
2.2 2R2 5 x 13 20 5 x 13 30 5 x 13 30
3.3 3R3 5 x 13 30 5 x 13 36 6.3 x 12 41
4.7 4R7 5 x 13 42 5 x 13 44 6.3 x 12 50
10 100 5 x 12 55 6.3 x 12 65 6.3 x 12 68 6.3 x 12 72
22 220 5 x 12 71 5 x 12 76 6.3 x 12 88 6.3 x 12 96 6.3 x 14 109 8 x 16 133
33 330 5 x 12 78 5 x 13 88 6.3 x 12 100 6.3 x 14 115 6.3 x 14 126 8 x 13 154 10 x 17 190
47 470 5 x 12 87 5 x 13 94 6.3 x 13 111 6.3 x 12 119 6.3 x 14 138 8 x 13 174 8 x 16 214 10 x 21 237
100 101 6.3 x 12 136 6.3 x 12 145 6.3 x 16 174 8 x 16 215 8 x 16 232 10 x 17 296 10 x 21 326 13 x 22 377
220 221 6.3 x 14 215 6.3 x 16 231 8 x 16 298 8 x 16 319 10 x 17 401 10 x 21 459 13 x 22 527 16 x 27 625
330 331 8 x 16 305 8 x 16 327 8 x 16 365 10 x 17 454 10 x 21 514 13 x 22 613 13 x 27 675 16 x 33 793
470 471 8 x 16 364 8 x 16 390 8 x 20 460 10 x 17 542 10 x 21 613 13 x 22 731 13 x 27 780 16 x 37 942
1000 102 10 x 17 671 10 x 17 662 10 x 21 775 13 x 22 873 13 x 27 955 16 x 33 1111 18 x 37 1249 22 x 43 1359
2200 222 13 x 26 929 13 x 22 1051 13 x 22 1125 16 x 27 1344 16 x 33 1421 18 x 42 1699 22 x 43 1744
3300 332 13 x 22 1150 13 x 27 1288 16 x 27 1454 16 x 33 1611 16 x 37 1640 22 x 43 2027 25 x 52 2309
4700 472 13 x 27 1354 16 x 27 1552 16 x 33 1650 18 x 37 1881 22 x 43 2208 25 x 52 2347
10000 103 16 x 37 2062 18 x 42 2122 22 x 43 2503 25 x 52 2893
22000 223 22 x 43 3097
JEENN CHWANQ ENTERPRISE CO., LTD
Aluminum Electrolytic Capacitors, since 1975
11F-1, B, No.93, Tashun 1st Rd, Kaohsiung Taiwan TEL: 886-7-7319008 FAX: 886-7-7315732
Email: [email protected]
