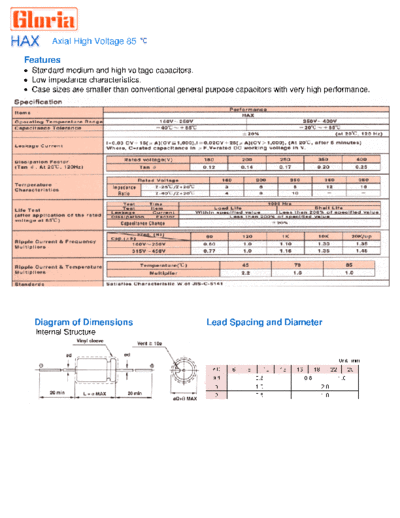

Image preview - the first page of the document
Gloria [axial] HAX Series


>> Download Gloria [axial] HAX Series documenatation <<

Text preview - extract from the document
       Axial High Voltage 85

Features
 Standard medium and high voltage capacitors.
 Low impedance characteristics.
 Case sizes are smaller than conventional general purpose capacitors with very high performance.




  Diagram of Dimensions                           Lead Spacing and Diameter
   Internal Structure
             Dimensions and Permissible Ripple Current


                     160           200           250           350          400
                    (200)         (250)         (300)         (400)        (450)
                   DXL mA        DXL mA        DXL mA        DXL mA      DXL mA
    1     010 6.3 x 12 7 6.3 x 16 9 6.3 x 16 12 8 x 16 13 8 x 16 15
  2.2    2R2 6.3 x 12 15 8 x 16 16 8 x 16 17 8 x 20 19 10 x 21 23
  3.3    3R3     8 x 16 21 8 x 16 26 8 x 20 31 8 x 20 33 10 x 21 36
  4.7    4R7     8 x 16 31 8 x 16 33 10 x 17 38 10 x 21 44 13 x 22 46
   10     100 10 x 17 60 10 x 21 66 10 x 21 72 13 x 22 77 13 x 27 82
   22     220 13 x 22 121 13 x 22 121 13 x 27 126 13 x 27 132 16 x 37 143
   33     330 13 x 22 154 13 x 27 167 16 x 27 178 16 x 33 186 16 x 42 201
   47     470 13 x 27 198 16 x 32 214 16 x 33 241 16 x 42 253 22 x 43 402
  100     101 16 x 33 345 16 x 37 368 18 x 43 391 22 x 43 402 25 x 52 448
  220     221 18 x 42 586 22 x 43 609 22 x 43 632
  330     331 22 x 43 632




                     JEENN CHWANQ ENTERPRISE CO., LTD
                     Aluminum Electrolytic Capacitors, since 1975
11F-1, B, No.93, Tashun 1st Rd, Kaohsiung Taiwan TEL: 886-7-7319008 FAX: 886-7-7315732
                            Email: [email protected]
