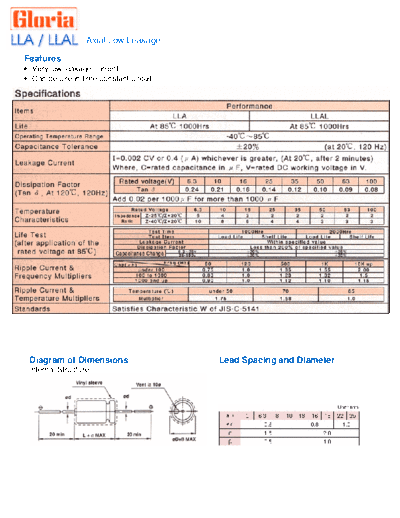

Image preview - the first page of the document
![Gloria [axial] LLA-LLAL Series](/pics/5c1c69435754b.gif)
>> Download Gloria [axial] LLA-LLAL Series documenatation <<
Text preview - extract from the document
Axial Low Leakage
Features
Very low leakage current
Can be use in time constant circuit
Diagram of Dimensions Lead Spacing and Diameter
Internal Structure
Dimensions and Permissible Ripple Current
6.3 10 16 25 35 50 63 100
DXL mA DXL mA DXL mA DXL mA DXL mA DXL mA DXL mA DXL mA
0.1 OR1 5 x 12 1.5 5 x 12 3.0 5 x 12 3.0
0.22 R22 5 x 12 3.5 5 x 12 4.6 5 x 12 4.5
0.33 R33 5 x 12 5.0 5 x 12 7.5 5 x 12 7.5
0.47 R47 5 x 12 6.0 5 x 12 9.0 5 x 12 9.0
1 010 5 x 12 10 5 x 12 15 5 x 12 15
2.2 2R2 5 x 12 20 5 x 12 20 6.3 x 12 30
3.3 3R3 5 x 12 30 5 x 12 42 6.3 x 12 48
4.7 4R7 5 x 12 50 6.3 x 12 54 6.3 x 16 61
10 100 5 x 11 45 6.3 x 12 79 6.3 x 12 79 6.3 x 16 90
22 220 5 x 11 58 5 x 11 62 5 x 11 71 6.3 x 16 125 6.3 x 12 139 8 x 16 149
33 330 5 x 11 71 6.3 x 11 76 6.3 x 11 88 8 x 16 171 8 x 16 171 10 x17 209
47 470 5 x 11 76 5 x 11 85 6.3 x 11 97 6.3 x 11 105 8 x 16 204 8 x 16 233 10 x 21 261
100 101 5 x 11 103 5 x 11 111 6.3 x 11 133 6.3 x 11 142 8 x 11.5 166 10 x 17 340 10 x 21 356 13 x 27 433
220 221 6.3 x 11 158 6.3 x 11 170 8 x 11.5 214 8 x 11.5 236 10 x 12.5 290 10 x 21 575 13 x 27 601 16 x 33 712
330 331 8 x 11.5 219 8 x 11.5 234 8 x 11.5 271 10 x 12.5 328 10 x 20 387 13 x 27 736 16 x 27 787 16 x 37 895
470 471 8 x 11.5 261 8 x 11.5 289 10 x 12.5 367 10 x 20 427 13 x 21 485 16 x 27 939 16 x 33 973 18 x 37 1109
1000 102 10 x 12.5 431 10 x 16 480 10 x 20 562 13 x 21 656 13 x 26 715 16 x 37 1458 16 x 43 1559
2200 222 10 x 20 733 13 x 21 786 13 x 26 919 16 x 26 1016 16 x 32 1138 22 x 43 2440
3300 332 13 x 21 897 13 x 21 1006 16 x 26 1164 16 x 32 1290 18 x 36 1440
4700 472 16 x 26 1159 16 x 26 1243 16 x 36 1432 18 x 41 1629 18 x 41 1859
JEENN CHWANQ ENTERPRISE CO., LTD
Aluminum Electrolytic Capacitors, since 1975
11F-1, B, No.93, Tashun 1st Rd, Kaohsiung Taiwan TEL: 886-7-7319008 FAX: 886-7-7315732
Email: [email protected]
