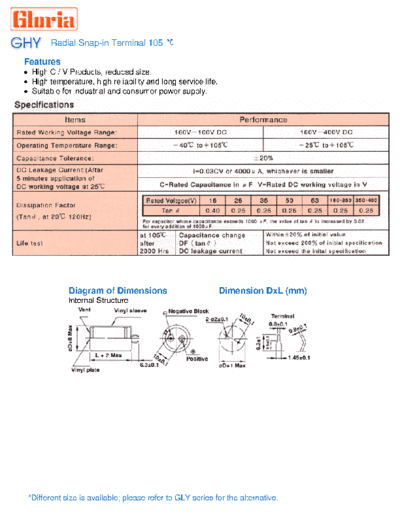

Image preview - the first page of the document



>> Download Gloria [snap-in] GHY Series documenatation <<

Text preview - extract from the document

        Radial Snap-in Terminal 105

Features
 High C / V Products, reduced size.
 High temperature, high reliability and long service life.
 Suitable for industrial and consumer power supply.




             Diagram of Dimensions                           Dimension DxL (mm)
             Internal Structure




 *Different size is available; please refer to GLY series for the alternative.
                Permissible Ripple Current mA RMS Max. at 120HZ
                  16         25       35        50       63      80                      180
                 (20)       (32)     (44)      (63)     (80)    (100)                   (125)
                                                                22 x 25    22 x 31     22 x 35
1000    102
                                                                 1.04       1.22        1.42
                                                                22 x 25    22 x 35     22 x 41
1500    152
                                                                 1.23       1.50        1.63
                                                    22 x 31     22 x 35    22 x 41     25 x 45
2200    222
                                                     1.39        1.65       1.80        2.23
                                        22 x 31     22 x 35     22 x 45    22 x 45     30 x 51
3300    332
                                         1.47        1.82        1.95       2.26        3.02
                            22 x 31     22 x 31     22 x 41     25 x 45    30 x 45     35 x 51
4700    472
                             1.49        1.64        2.05        2.52       2.95        3.58
                22 x 25     22 x 35     22 x 40     25 x 45     30 x 41    35 x 45
6800    682
                 1.51        1.88        2.10        2.77        2.85       3.40
                22 x 31     22 x 41     22 x 45     25 x 51     30 x 51    35 x 51
8200    822
                 1.72        2.02        2.42        3.07        3.14       3.81
                22 x 35     22 x 45     25 x 45     30 x 45     35 x 51
10000   103
                 1.84        2.26        2.71        3.57        4.08
                22 x 41     22 x 51     25 x 51     30 x 51
12000   123
                 2.14        2.66        3.07        3.86
                22 x 45     25 x 45     30 x 45     35 x 45
15000   153
                 2.41        2.95        3.50        4.58
                25 x 45     30 x 51     35 x 51
22000   223
                 3.17        4.12        4.70




                        JEENN CHWANQ ENTERPRISE CO., LTD
                        Aluminum Electrolytic Capacitors, since 1975
   11F-1, B, No.93, Tashun 1st Rd, Kaohsiung Taiwan TEL: 886-7-7319008 FAX: 886-7-7315732
                               Email: [email protected]
