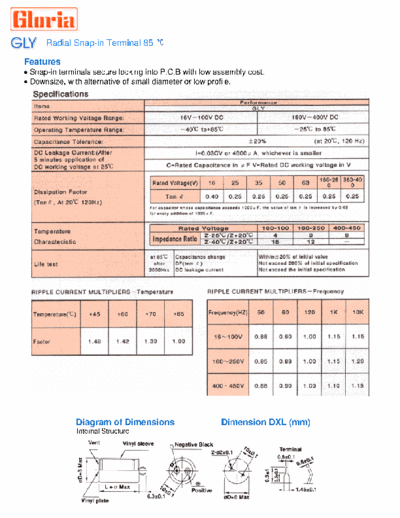

Image preview - the first page of the document
![Gloria [snap-in] GLY Series](/pics/5c1c6944cd7ec.gif)
>> Download Gloria [snap-in] GLY Series documenatation <<
Text preview - extract from the document
Radial Snap-in Terminal 85
Features
Snap-in terminals secure locking into P.C.B with low assembly cost.
Downsize, with alternative of small diameter or low profile.
Diagram of Dimensions Dimension DXL (mm)
Internal Structure
Permissible Ripple Current mA RMS Max. at 120HZ, 85
16 25 35 50
(20) (32) (44) (63)
22 25 30 35 22 25 30 35 22 25 30 35 22 25 30 35
22x31 25x25
3300 332
2.35 2.35
22x25 22x35 35x31
3900 392
2.16 2.66 2.66
22x31 25x25 22x41 25x35 30x25 35x25
4700 472
2.42 2.42 3.02 3.07 2.98 3.30
22x25 22x35 22x45 25x41 30x31
5600 562
2.11 2.66 3.40 3.47 3.42
22x31 25x25 22x41 25x31 30x25 22x51 25x41 30x35
6800 682
2.47 2.47 2.97 2.82 2.93 3.84 3.74 3.93
22x25 22x35 22x45 25x25 25x51 30x41 35x31
8200 822
2.55 2.66 3.29 3.17 4.44 4.47 4.36
22x31 22x41 25x31 30x25 22x51 25x41 30x31 30x45 35x35
10000 103
2.89 3.31 3.15 3.27 3.75 3.65 3.60 5.08 5.01
22x31 25x25 22x45 25x35 30x31 25x45 30x35 35x31 30x51 35x41
12000 123
3.01 3.01 3.77 3.63 3.80 4.35 4.14 4.27 5.72 5.69
22x35 25x31 30x25 22x51 25x41 30x41 35x35 35x45
15000 153
3.45 3.48 3.61 4.21 4.10 4.77 4.95 6.56
22x41 25x35 25x45 30x35 35x31 30x45 35x41 35x51
18000 183
3.84 3.91 4.35 4.52 4.66 5.30 5.52 7.14
22x51 25x41 30x31 30x45 35x35 35x45
22000 223
4.52 4.40 4.34 5.33 5.26 6.20
25x45 30x35 30x51 35x41 35x51
27000 273
4.96 4.95 5.96 5.93 6.89
30x41 35x31 35x45
33000 333
5.60 5.46 6.65
30x45 35x35 35x51
39000 393
6.21 6.12 7.31
30x54 35x41
47000 470
6.93 6.89
35x45
56000 563
7.69
JEENN CHWANQ ENTERPRISE CO., LTD
Aluminum Electrolytic Capacitors, since 1975
11F-1, B, No.93, Tashun 1st Rd, Kaohsiung Taiwan TEL: 886-7-7319008 FAX: 886-7-7315732
Email: [email protected]
