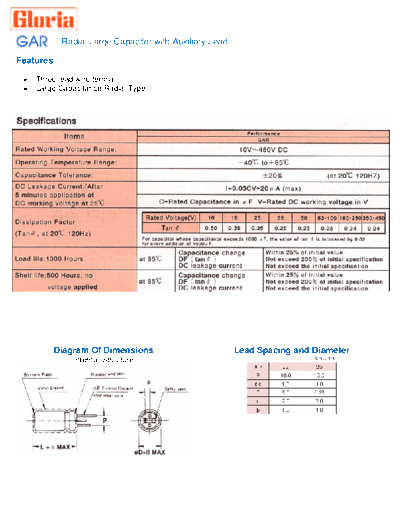

Image preview - the first page of the document
Gloria [radial 3-terminals] GAR Series


>> Download Gloria [radial 3-terminals] GAR Series documenatation <<

Text preview - extract from the document
            Radial Large Capacitor with Auxiliary Lead.

Features

    Three lead wire termial.
    Large Capacitance Radial Type.




           Diagram Of Dimensions                          Lead Spacing and Diameter
               Internal Structure
                 CASE SIZE OF STANDARD PRODUCTS: TYPE GAR                                   DxL (mm)

          10         16        25         35         50        63       100          160       200      250     350
         (13)       (20)      (32)       (44)       (63)      (79)     (125)        (200)     (250)    (300)   (400)
150                                                                                                    22x40   15x49
220                                                                                           22x46    25x45
330                                                                                 22x41     25x49    25x49
470                                                                                 25x49
1000                                                                   22x34
1500                                                                   25x40
2200                                                        22x40
3300                                              22x40     25x49
4700                                    22x40     25x49
6800                         22x36      25x42
10000              22x34     25x42
15000   22x40      25x42
22000   25x49

                     PERMISSIBLE RIPPLE CURRENT (mA, RMS) at 120Hz 85

         10         16       25         35        50        63       100       160           200       250     350
 150                                                                                                   190     215
 220                                                                                         250       300
 330                                                                           360           430       470
 470                                                                           570
 1000                                                                750
 1500                                                                900
 2200                                                      900
 3300                                            1000      1080
 4700                                  1050      1188
 6800                       1300       1385
10000              1500     1750
15000   1600       1800
22000   1788

* Item other than listed above is available on demand.




                                     JEENN CHWANQ ENTERPRISE CO., LTD
                                     Aluminum Electrolytic Capacitors, since 1975
              11F-1, B, No.93, Tashun 1st Rd, Kaohsiung Taiwan TEL: 886-7-7319008 FAX: 886-7-7315732
                                          Email: [email protected]
