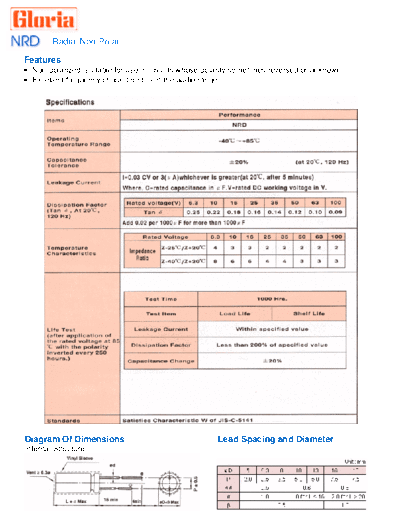

Image preview - the first page of the document
![Gloria [radial non-polar] NRD Series](/pics/5c211377c3bbe.gif)
>> Download Gloria [radial non-polar] NRD Series documenatation <<
Text preview - extract from the document
Radial Non-Polar
Features
Non-polarized, suitable for use in circuits whose polarity sometimes reversed or unknown.
Excellent frequency characteristics in the audio range.
Diagram Of Dimensions Lead Spacing and Diameter
Internal Structure
Dimensions and Permissible Ripple Current
6.3 10 16 25 35 50 63 100
(8) (13) (20) (32) (44) (63) (79) (125)
DXL mA DXL mA DXL mA DXL mA DXL mA DXL mA DXL mA DXL mA
0.1 OR1 5 x 11 4 5 x 11 5 5 x 11 5
0.22 R22 5 x 11 7 5 x 11 8 5 x 11 8
0.33 R33 5 x 11 8 5 x 11 10 5 x 11 10
0.47 R47 5 x 11 10 5 x 11 12 5 x 11 12
1 010 5 x 11 15 5 x 11 18 6.3 x 11 23
2.2 2R2 5 x 11 23 5 x 11 25 6.3 x 11 26
3.3 3R3 5 x 11 28 5 x 11 31 6.3 x 11 32
4.7 4R7 5 x 11 33 6.3 x 11 37 8 x 11.5 44
10 100 5 x11 40 5 x 11 42 6.3 x 11 46 8 x 11.5 55 8 x 11.5 61 8 x 11.5 66
22 220 5 x 11 50 5 x 11 56 5 x 11 59 6.3 x 11 63 8 x 11.5 76 8 x 11.5 82 10 x 12.5 108 10 x 16 118
33 330 5 x 11 62 5 x 11 69 6.3 x 11 73 6.3 x 11 78 8 x 11.5 94 8 x 11.5 104 10 x 16 137 10 x 20 152
47 470 5 x 11 74 6.3 x 11 83 6.3 x 11 88 8 x 11.5 105 8 x 11.5 115 10 x 16 150 10 x 20 172 13 x 21 193
100 101 6.3 x 11 108 8 x 11 137 8 x 11.5 149 10 x 12.5 182 10 x 16 202 10 x 20 229 13 x 21 267 16 x 26 315
220 221 8 x 11.5 181 10 x 12.5 242 10 x 16 265 10 x 20 294 13 x 21 335 13 x 26 378 16 x 26 443 16 x 36 498
330 331 8 x 15 236 10 x 16 308 10 x 20 340 13 x 21 384 13 x 26 429 16 x 26 496 16 x 32 653
470 471 10 x 16 329 10 x 20 385 13 x 21 432 13 x 26 479 10 x 26 548 16 x 32 614 18 x 41 787
1000 102 10 x 20 502 13 x 21 598 13 x 26 659 16 x 32 775 16 x 36 852 18 x 41 1048
2200 222 13 x 26 829 16 x 26 992 16 x 36 1114 18 x 41 1347
JEENN CHWANQ ENTERPRISE CO., LTD
Aluminum Electrolytic Capacitors, since 1975
11F-1, B, No.93, Tashun 1st Rd, Kaohsiung Taiwan TEL: 886-7-7319008 FAX: 886-7-7315732
Email: [email protected]
