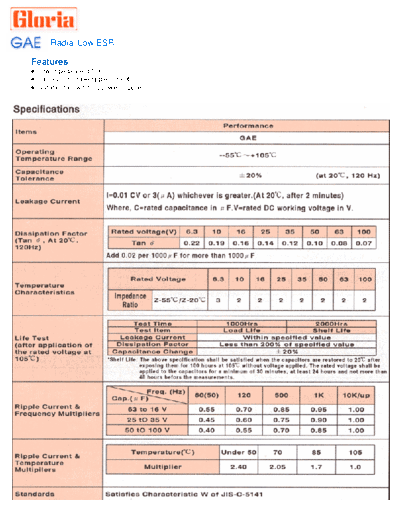

Image preview - the first page of the document
![Gloria [radial thru-hole] GAE Series](/pics/5c21d0941db6a.gif)
>> Download Gloria [radial thru-hole] GAE Series documenatation <<
Text preview - extract from the document
Radial Low ESR
Features
Low impedance, ESR.
Large permissible ripple current.
Suitable for switching power suppliers.
Diagram of Dimensions Lead Spacing and Diameter
Internal Structure
Dimensions and Permissible Ripple Current
6.3 10 16 25 35 50 63 100
(8) (13) (20) (32) (44) (63) (79) (125)
DXL mA DXL mA DXL mA DXL mA DXL mA DXL mA DXL mA DXL mA
1 010 5 x 11 24 5 x 11 26 5 x 11 27
2.2 2R2 5 x 11 36 5 x 11 40 5 x 11 43
3.3 3R3 5 x 11 44 5 x 11 50 5 x 11 54
4.7 4R7 5 x 11 54 5 x 11 60 6.3 x 11 68
6.8 6R8 5 x 11 61 6.3 x 11 78 6 x 11 83
10 100 5 x 11 78 6.3 x 11 86 8 x 11.5 104
22 220 5 x 11 89 6.3 x 11 122 6.3 x 11 129 8 x 11.5 230
33 330 5 x 11 86 5 x 11 96 6.3 x 11 114 6.3 x 11 141 8 x 11.5 164 10 x 12.5 293
39 390 5 x 11 100 6.3 x 11 98 6.3 x 11 125 6.3 x 11 153 8 x 11.5 176 10 x 16 337
47 470 5 x 11 98 6.3 x 11 110 6.3 x 11 108 6.3 x 11 137 6.3 x 11 176 8 x 11.5 279 10 x 20 423
10 x
56 560 5 x 11 100 6.3 x 11 125 6.3 x 11 120 6.3 x 11 151 8 x 11.5 191 325 10 x 20 456
12.5
10 x
68 680 5 x 11 101 6.3 x 11 130 6.3 x 11 134 6.3 x 11 170 8 x 11.5 306 358 10 x 25 526
12.5
100 101 5 x 11 110 6.3 x 11 124 6.3 x 11 155 8 x 11.5 169 8 x 11.5 301 10 x 16 376 10 x 20 527 13 x 20 719
220 221 6.3 x 11 166 8 x 11.5 193 8 x 11.5 296 10 x 12.5 269 10 x 16 477 10 x 25 726 13 x 20 798 16 x 25 1170
330 331 8 x 11.5 212 8 x 11.5 296 10 x 12.5 395 10 x 16 464 10 x 20 645 13 x 20 866 13 x 25 979 16 x 31.5 1520
390 391 8 x 11.5 292 10 x 12.5 346 10 x 16 452 10 x 20 597 10 x 25 726 13 x 25 979 16 x 20 1240 16 x 35.5 1730
10 x
470 471 352 10 x 12.5 372 10 x 16 477 10 x 20 620 13 x 20 842 13 x 25 1020 16 x 25 1420 18 x 35.5 1770
12.5
10 x 16 x
560 561 372 10 x 16 431 10 x 20 577 10 x 25 726 13 x 20 855 16 x 20 1280 1450 18 x 35.5 2070
12.5 31.5
16 x
680 681 10 x 16 431 10 x 16 477 10 x 20 620 13 x 20 842 13 x 25 986 16 x 20 1340 1730 18 x 40 2300
31.5
16 x 18 x
1000 102 10 x 20 577 10 x 20 645 13 x 20 850 13 x 25 986 16 x 20 1260 1760 1990
31.5 35.5
16 x
1200 122 10 x 20 620 10 x 25 836 13 x 20 894 13 x 25 1030 16 x 25 1430 1920
35.5
16 x
2200 222 13 x 20 942 13 x 25 1010 16 x 20 1270 16 x 25 1380 1990 18 x 40 2320
35.5
3300 332 13 x 25 1020 16 x 20 1320 16 x 31.5 1480 16 x 35.5 1960 18 x 40 2320
4700 472 16 x 25 1370 16 x 31.5 1760 16 x 35.5 1960 18 x 40 2290
JEENN CHWANQ ENTERPRISE CO., LTD
Aluminum Electrolytic Capacitors, since 1975
11F-1, B, No.93, Tashun 1st Rd, Kaohsiung Taiwan TEL: 886-7-7319008 FAX: 886-7-7315732
Email: [email protected]
