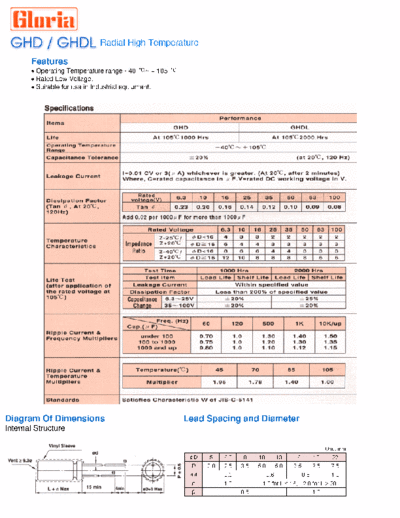

Image preview - the first page of the document
![Gloria [radial thru-hole] GHD-GHDL Series](/pics/5c23036a25c59.gif)
>> Download Gloria [radial thru-hole] GHD-GHDL Series documenatation <<
Text preview - extract from the document
Radial High Temperature
Features
Operating Temperature range - 40 ~ + 105
Rated Low Voltage.
Suitable for use in Industrial equipment.
Diagram Of Dimensions Lead Spacing and Diameter
Internal Structure
Dimensions and Permissible Ripple Current
105
6.3 10 16 25 35 50 63 100
(8) (13) (20) (32) (44) (63) (79) (125)
DXL mA DXL mA DXL mA DXL mA DXL mA DXL mA DXL mA DXL mA
0.1 OR1 5 x 11 2.0 5 x 11 3.0 5 x 11 3.0
0.22 R22 5 x 11 3.5 5 x 11 4.5 5 x 11 4.5
0.33 R33 5 x 11 5.0 5 x 11 7.5 5 x 11 7.5
0.47 R47 5 x 11 6.0 5 x 11 9.0 5 x 11 9.0
1 010 5 x 11 10 5 x 11 15 5 x 11 15
2.2 2R2 5 x 11 20 5 x 11 30 5 x 11 30
3.3 3R3 5 x 11 30 5 x 11 31 5 x 11 31
4.7 4R7 5 x 11 33 5 x 11 36 5 x 11 40
10 100 5 x 11 45 5 x 11 50 5 x 11 52 8 x 11.5 66
22 220 5 x 11 58 5 x 11 62 5 x 11 71 5 x 11 78 8 x 11.5 93 8 x 11.5 99
33 330 5 x 11 71 5 x 11 76 6.3 x 11 88 6.3 x 11 96 8 x 11.5 114 10 x 16 148
47 470 5 x 11 76 5 x 11 85 6.3 x 11 97 6.3 x 11 105 8 x 11.5 130 8 x 11.5 141 10 x 16 170
10 x
100 101 5 x 11 103 5 x 11 111 6.3 x 11 133 6.3 x 11 142 8 x 11 166 188 10 x 16 234 13 x 21 284
12.5
10 x
220 221 6.3 x 11 158 6.3 x 11 170 8 x 11.5 214 8 x 12.5 236 290 10 x 16 315 13 x 21 397 16 x 26 455
12.5
10 x
330 331 8 x 11.5 219 8 x 11.5 234 8 x 12.5 271 328 10 x 20 387 10 x 20 400 13 x 26 491 16 x 32 578
12.5
10 x
470 471 8 x 11.5 261 8 x 11.5 289 367 10 x 16 380 10 x 20 415 13 x 21 506 16 x 26 627 18 x 36 711
12.5
10 x
1000 102 431 10 x 16 480 10 x 20 562 13 x 21 656 13 x 26 715 16 x 26 869 16 x 36 942 22 x 41 1085
12.5
2200 222 10 x 20 645 10 x 20 695 13 x 21 919 13 x 25 930 16 x 31 1138 18 x 36 1319 22 x 41 1469
3300 332 13 x 21 897 13 x 21 1006 13 x 25 1000 16 x 31 1290 18 x 36 1440 22 x 41 1707
4700 472 13 x 25 950 13 x 25 1100 16 x 31 1320 16 x 36 1500 18 x 41 1720
6800 682 13 x 25 1150 16 x 26 1330 16 x 36 1540 18 x 36 1830
10000 103 16 x 26 1430 16 x 36 1680 18 x 36 1930 20 x 41 2150
* Alternative D X L available upon request
JEENN CHWANQ ENTERPRISE CO., LTD
Aluminum Electrolytic Capacitors, since 1975
11F-1, B, No.93, Tashun 1st Rd, Kaohsiung Taiwan TEL: 886-7-7319008 FAX: 886-7-7315732
Email: [email protected]
