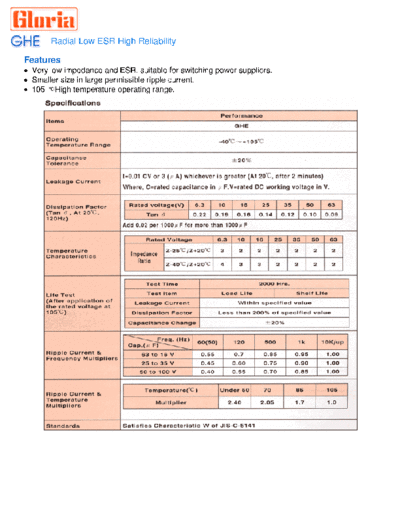

Image preview - the first page of the document
Gloria [radial thru-hole] GHE Series


>> Download Gloria [radial thru-hole] GHE Series documenatation <<

Text preview - extract from the document
       Radial Low ESR High Reliability

Features
 Very low impedance and ESR, suitable for switching power suppliers.
 Smaller size in large permissible ripple current.
 105 High temperature operating range.
   Diagram of Dimensions                                                   Lead Spacing and Diameter
   Internal Structure




                         Dimensions and Permissible Ripple Current


                   6.3            10             16             25            35            50               63
                   (8)           (13)           (20)           (32)          (44)          (63)             (79)

                 DXL     mA   DXL mA          DXL      mA    DXL      mA    DXL     mA   DXL      mA      DXL mA

    22   220                                                                          10 x 12.5   175   10 x 16   240
    33   330                                                            10 x 12.5 175 10 x 16     240   10 x 16   265
    47   470                                              10 x 12.5 175 10 x 16 190 10 x 20       315   10 x 20   340
   100   101                                10 x 12.5 175 10 x 16 240 10 x 20 315 13 x 21         440   13 x 26   610

   220   221 10 x 12.5 175 10 x 16 240 10 x 16 265 13 x 21 440 13 x 26 610 16 x 26 850 16 x 32 1155

   330   331   10 x 16   240 10 x 20 315    10 x 20     340 13 x 26 610 16 x 26 850 16 x 32 1155
   470   471   10 x 20   315 13 x 21 440    13 x 21     470 16 x 26 850 16 x 32 1155
  1000   102   13 x 21   440 13 x 26 610    16 x 26     850 16 x 32 1155
  2200   222   16 x 26   850 16 x 32 1155   18 x 36    1400

* Alternative D X L available upon request
