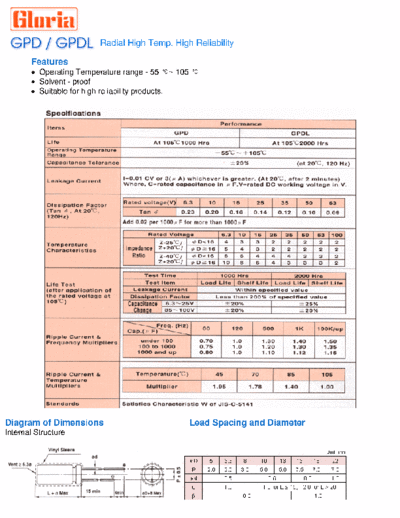

Image preview - the first page of the document
![Gloria [radial thru-hole] GPD-GPDL Series](/pics/5c2d908c4fc39.gif)
>> Download Gloria [radial thru-hole] GPD-GPDL Series documenatation <<
Text preview - extract from the document
Radial High Temp. High Reliability
Features
Operating Temperature range - 55 ~ 105
Solvent - proof
Suitable for high reliability products.
Diagram of Dimensions Lead Spacing and Diameter
Internal Structure
Dimensions and Permissible Ripple Current
105
6.3 10 16 25 35 50 63
(8) (13) (20) (32) (44) (63) (79)
DXL mA DXL mA DXL mA DXL mA DXL mA DXL mA DXL mA
0.1 OR1 5 x 11 2.0 5 x 11 3.0
0.22 R22 5 x 11 3.5 5 x 11 4.5
0.33 R33 5 x 11 5.0 5 x 11 7.5
0.47 R47 5 x 11 6.0 5 x 11 9.0
1 010 5 x 11 10 5 x 11 15
2.2 2R2 5 x 11 20 5 x 11 30
3.3 3R3 5 x 11 30 5 x 11 31
4.7 4R7 5 x 11 33 5 x 11 36
10 100 5 x 11 45 5 x 11 50 5 x 11 52
22 220 5 x 11 58 5 x 11 62 5 x 11 71 5 x 11 78 8 x 11.5 93
33 330 5 x 11 71 6.3 x 11 76 6.3 x 11 88 6.3 x 11 96 8 x 11.5 141
47 470 5 x 11 76 5 x 11 85 6.3 x 11 97 6.3 x 11 105 8 x 11.5 130 8 x 11.5 141
100 101 5 x 11 103 5 x 11 111 6.3 x 11 133 6.3 x 11 142 8 x 11.5 166 8 x 11.5 188 10 x 16 234
220 221 6.3 x 11 158 6.3 x 11 170 8 x 11.5 214 8 x 11.5 236 10x 12.5 290 10 x 20 315 13 x 21 397
330 331 8 x 11.5 219 8 x 11.5 234 8 x 11.5 271 10 x 12.5 328 10 x 20 387 13 x 21 445 13 x 26 491
470 471 8 x 11.5 261 8 x 11.5 289 10 x12.5 367 10 x 20 427 13 x 21 485 13 x 26 556 16 x 26 627
1000 102 10 x 12.5 431 10 x 16 480 10 x 20 562 13 x 21 656 13 x 26 715 16 x 32 869 16 x 36 942
2200 222 10 x 20 733 13 x 21 786 13 x 26 919 16 x 26 1016 16 x 32 1138 18 x 41 1319 22 x 41 1469
3300 332 13 x 21 897 13 x 21 1006 16 x 26 1164 16 x 32 1290 18 x 36 1440 22 x 41 1707
4700 472 16 x 26 1159 16 x 26 1243 16 x 36 1432 18 x 41 1629 18 x 41 1859
* Alternative D X L available upon request
JEENN CHWANQ ENTERPRISE CO., LTD
Aluminum Electrolytic Capacitors, since 1975
11F-1, B, No.93, Tashun 1st Rd, Kaohsiung Taiwan TEL: 886-7-7319008 FAX: 886-7-7315732
Email: [email protected]
