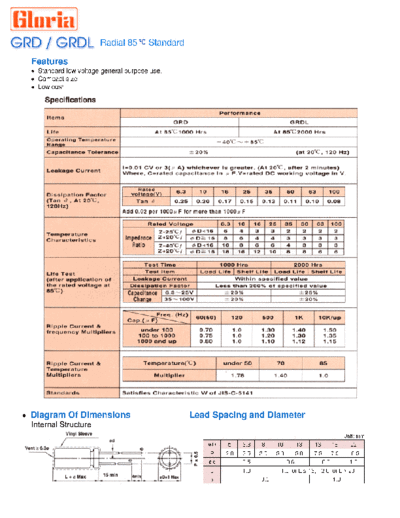

Image preview - the first page of the document
![Gloria [radial thru-hole] GRD-GRDL Series](/pics/5c1d0e4bd4933.gif)
>> Download Gloria [radial thru-hole] GRD-GRDL Series documenatation <<
Text preview - extract from the document
Radial 85 Standard
Features
Standard low voltage general purpose use.
Campact size
Low cost
Diagram Of Dimensions Lead Spacing and Diameter
Internal Structure
Dimensions and Permissible Ripple Current
6.3 10 16 25 35 50 63 100
(8) (13) (20) (32) (44) (63) (79) (125)
DXL mA DXL mA DXL mA DXL mA DXL mA DXL mA DXL mA DXL mA
0.1 OR1 5 x 11 1.5 5 x 11 3.0 5 x 11 3.0
0.22 R22 5 x 11 3.5 5 x 11 4.5 5 x 11 4.5
0.33 R33 5 x 11 5.0 5 x 11 7.5 5 x 11 7.5
0.47 R47 5 x 11 6.0 5 x 11 9.0 5 x 11 9.0
1 010 5 x 11 10 5 x 11 15 5 x 11 15
2.2 2R2 5 x 11 20 5 x 11 30 5 x 11 30
3.3 3R3 5 x 11 30 5 x 11 38 5 x 11 38
4.7 4R7 5 x 11 41 5 x 11 43 5 x 11 46
10 100 5 x 11 54 5 x 11 60 5 x 11 63 6.3 x 11 71
6.3 x
22 220 5 x 11 70 5 x 11 75 5 x 11 81 5 x 11 95 100 8 x 12.5 123
11
6.3 x 6.3 x 10 x
33 330 5 x 11 86 5 x 11 92 5 x 11 106 116 143 170
11 11 12.5
6.3 x 6.3 x
47 470 5 x 11 92 5 x 11 102 5 x 11 110 5 x 11 126 162 170 10 x 16 224
11 11
6.3 x 8x 10 x
100 101 5 x 11 125 5 x 11 134 5 x 11 160 6.3 x 11 171 215 236 297 10 x 20 342
11 11.5 12.5
6.3 x 6.3 x 6.3 x 10 x
220 221 198 212 277 8 x 11.5 319 381 10 x 16 434 10 x 16 479 13 x 25 554
11 11 11 12.5
6.3 x 8x 8x 10 x
330 331 383 303 339 449 10 x 16 508 10 x 20 570 13 x 21 669 16 x 26 787
11 11.5 11.5 12.5
8x 8x 8x 10 x
470 471 337 362 482 536 10 x 16 606 13 x 21 724 13 x 21 829 16 x 31 942
11.5 11.5 12.5 12.5
8x 10 x
1000 102 508 630 10 x 16 731 10 x 20 866 13 x 21 948 13 x 25 1112 16 x 26 1162 18 x 40 1345
14.5 12.5
2200 222 10 x 20 919 10 x 20 1041 13 x 21 1115 13 x 21 1334 16 x 26 1440 16 x 36 1689 18 x 41 1820
3300 332 10 x 20 1139 13 x 21 1278 13 x 25 1444 16 x 26 1600 16 x 36 1692 18 x 36 2006 22 x 41 2230
4700 472 13 x 21 1437 13 x 25 1541 16 x 26 1639 16 x 31 1870 18 x 36 2185 22 x 41 2231 25 x 41 2650
10000 103 16 x 26 1994 16 x 36 2337 18 x 36 2478 18 x 41 2700
22000 223 18 x 41 3066
* Alternative D X L available upon request
