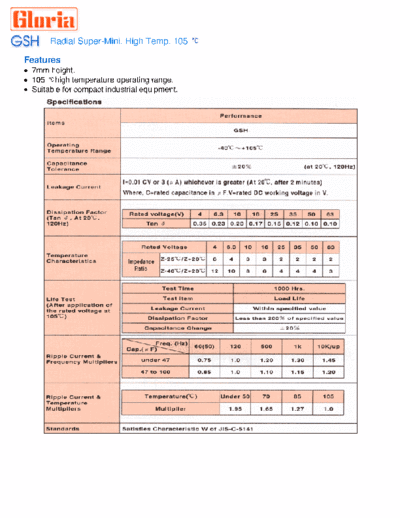

Gloria [radial thru-hole] GSH Series


>> Download Gloria [radial thru-hole] GSH Series documenatation <<

Text preview - extract from the document
       Radial Super-Mini. High Temp. 105

Features
 7mm height.
 105 high temperature operating range.
 Suitable for compact industrial equipment.
     Diagram of Dimensions                                        Lead Spacing and Diameter
     Internal Structure




                          Dimensions and Permissible Ripple Current
                                                                                         105

                   4          6.3         10          16           25            35       50             63
                  (6)         (8)        (13)        (20)         (32)          (44)     (63)           (79)
                DXL mA      DXL mA     DXL mA       DXL mA      DXL mA         DXL mA   DXL mA        DXL mA
0.1     OR1                                                                  4x7                2     4x7      2
0.22    R22                                                                  4x7                3     4x7      3
0.33    R33                                                                  4x7                4     4x7      4
0.47    R47                                                                  4x7                4     4x7      5
 1      010                                                                  4x7                8     4x7      8
2.2     2R2                                                                  4x7                11    4x7      15
3.3     3R3                                                                  4x7                14    5x7      15
4.7     4R7                                                        4 x 7 16 5 x 7               18   6.3 x 7   19
 10     100                                              4 x 7 21 5 x 7 24 6.3 x 7              27
 22     220                            4 x 7 27 4 x 7 30 5 x 7 33 6.3 x 7 37
33      330    4 x 7 32 4 x 7 32 4 x 7 35 5 x 7 38 6.3 x 7 41 8 x 9 53
47      470    4 x 7 38 4 x 7 38 5 x 7 41 6.3 x 7 48 6.3 x 7 49 8 x 9 63
100     101    5 x 7 57 6.3 x 7 58 6.3 x 7 63 6.3 x 7 68
220     221 6.3 x 7 87 6.3 x 7 99 8 x 9 106




                                JEENN CHWANQ ENTERPRISE CO., LTD
                                Aluminum Electrolytic Capacitors, since 1975
           11F-1, B, No.93, Tashun 1st Rd, Kaohsiung Taiwan TEL: 886-7-7319008 FAX: 886-7-7315732
