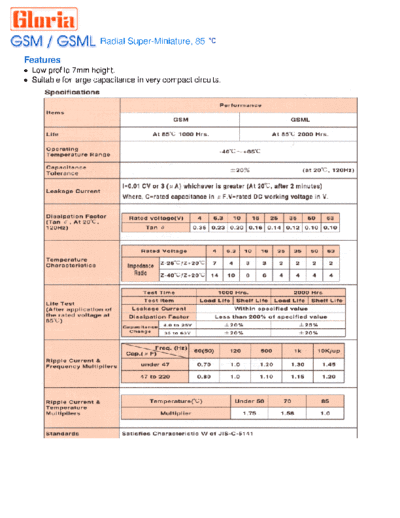

Image preview - the first page of the document
Gloria [radial thru-hole] GSM-GSML Series


>> Download Gloria [radial thru-hole] GSM-GSML Series documenatation <<

Text preview - extract from the document
                      Radial Super-Miniature, 85

Features
 Low profile 7mm height.
 Suitable for large capacitance in very compact circuits.
       Diagram of Dimensions                                     Lead Spacing and Diameter
       Internal Structure




                         Dimensions and Permissible Ripple Current


                    4          6.3         10           16          25            35       50             63
                   (6)         (8)        (13)         (20)        (32)          (44)     (63)           (79)
                 DXL mA      DXL mA      DXL mA      DXL mA      DXL mA         DXL mA   DXL mA        DXL mA
0.1     OR1                                                                   4x7                2     4x7      2
0.22    R22                                                                   4x7                3     4x7      3
0.33    R33                                                                   4x7                4     4x7      4
0.47    R47                                                                   4x7                4     4x7      5
 1      010                                                                   4x7                8     4x7      8
2.2     2R2                                                                   4x7                11    4x7      15
3.3     3R3                                                                   4x7                14    5x7      15
4.7     4R7                                                         4 x 7 16 5 x 7               18   6.3 x 7   19
 10     100                                               4 x 7 21 5 x 7 24 6.3 x 7              27
 22     220                             4 x 7 27 4 x 7 30 5 x 7 33 6.3 x 7 37
33       330    4 x 7 32 4 x 7 32 4 x 7 35 5 x 7 38 6.3 x 7 41 8 x 9 53
47       470    4 x 7 38 4 x 7 38 5 x 7 41 6.3 x 7 48 6.3 x 7 49 8 x 9 63
100      101    5 x 7 57 6.3 x 7 58 6.3 x 7 63 6.3 x 7 68
220      221 6.3 x 7 87 6.3 x 7 99 8 x 9 106
330      331    8 x 9 129
470      471    8 x 9 154




                                 JEENN CHWANQ ENTERPRISE CO., LTD
                                 Aluminum Electrolytic Capacitors, since 1975
            11F-1, B, No.93, Tashun 1st Rd, Kaohsiung Taiwan TEL: 886-7-7319008 FAX: 886-7-7315732
                                        Email: [email protected]
