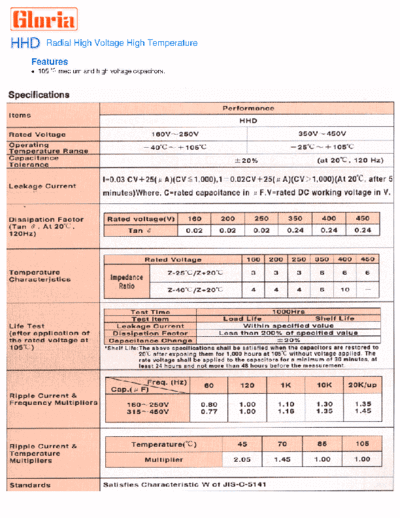

Image preview - the first page of the document
Gloria [radial thru-hole] HHD Series


>> Download Gloria [radial thru-hole] HHD Series documenatation <<

Text preview - extract from the document
   Radial High Voltage High Temperature

Features
 105   medium and high voltage capacitors.
Diagram of Dimensions                                      Lead Spacing and Diameter
Internal Structure




                       Dimensions and Permissible Ripple Current
                                                                                                     105

                          160             200               250             350               400               450
                         (200)           (250)             (300)           (400)             (450)             (500)

                        DXL      mA     DXL      mA      DXL       mA     DXL      mA       DXL      mA       DXL      mA

        1        010                                   6.3 x 11     12  8 x 12      13     8 x 12     13    8 x 12      13
      2.2        2R2                                   6.3 x 11     18  8 x 12      18   10 x 12.5    34   10 x 12.5    34
      3.3        3R3 6.3 x 11 27 6.3 x 11         27    8 x 12      31 10 x 12.5    34   10 x 12.5    34    10 x 16     38
      4.7        4R7  8 x 12 37   8 x 12          37    8 x 12      37  10 x 16     45    10 x 20     50    10 x 20     50
       10        100 10 x 12.5 65 10 x 16         65   10 x 16      73  10 x 20     74    13 x 21     75    13 x 21     75
       22        220 10 x 20 118 10 x 20         118   13 x 21     140 13 x 26     141    16 x 26    141    16 x 26    141
       33        330 10 x 20 145 13 x 21         171   13 x 26     188 16 x 26     193    16 x 31    189    16 x 32    189
       47        470 13 x 21 205 13 x 26         225   16 x 26     231 16 x 32     253    16 x 36    238    16 x 36    238
      100        101 16 x 21 337 16 x 31         369   16 x 36     426
      220        221 18 x 36 632 18 x 41         675
      330        331 18 x 41 826

* Alternative D X L available upon request




                                 JEENN CHWANQ ENTERPRISE CO., LTD
                                 Aluminum Electrolytic Capacitors, since 1975
      11F-1, B, No.93, Tashun 1st Rd, Kaohsiung Taiwan TEL: 886-7-7319008 FAX: 886-7-7315732
                                   Email: [email protected]
