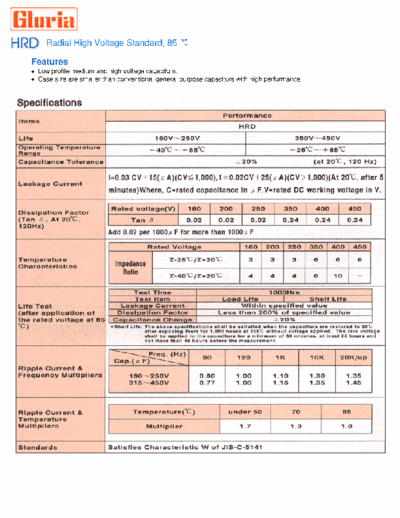

Image preview - the first page of the document
Gloria [radial thru-hole] HRD Series


>> Download Gloria [radial thru-hole] HRD Series documenatation <<

Text preview - extract from the document
    Radial High Voltage Standard, 85

Features
 Low profile medium and high voltage capacitors.
 Case size are smaller than conventional general purpose capacitors with high performance.
Diagram of Dimensions                                         Lead Spacing and Diameter
Internal Structure




                           Dimensions and Permissible Ripple Current


                            160                 200               250               350            400              450
                           (200)               (250)             (300)             (400)          (450)            (500)
                         DXL       mA        DXL       mA      DXL       mA       DXL      mA    DXL      mA      DXL      mA
      0.47      R47                                                            6.3 x 11     14 8 x 12.5 16      8 x 12      16
        1       010                                          6.3 x 11     15     8 x 12     15 8 x 12.5 17      8 x 12      17
       2.2      2R2                                          6.3 x 11     24     8 x 12     26 10 x 12.5 28    10 x 12.5    31
       3.3      3R3   6.3 x 11      30     6.3 x 11     30    8 x 12      35   10 x 12.5    38 10 x 16 40       10 x 16     42
       4.7      4R7    8 x 12       36      8 x 12      36    8 x 12      36    10 x 16     40 10 x 20 48       10 x 20     50
       10       100   10 x 12.5     65     10 x 16      70   10 x 16      70    10 x 20     75 13 x 21 80       13 x 21     85
       22       220    10 x 20     110     10 x 20     110   13 x 21     130    13 x 26    148 13 x 26 155      16 x 26    158
       33       330    13 x 21     150     13 x 21     150   13 x 21     160    16 x 26    185 16 x 26 195      16 x 32    212
       47       470    13 x 21     180     13 x 26     180   13 x 26     205    16 x 32    210 18 x 36 220      16 x 36    266
      100       101    16 x 26     300     16 x 26     315   16 x 36     340    18 x 41    350 18 x 41 360      22 x 41    380
      220       221    16 x 36     510     18 x 36     490   22 x 41     530
      330       331    18 x 41     530     22 x 41     670
      470       471    22 x 41     800

    * Alternative D X L available upon request




                                         JEENN CHWANQ ENTERPRISE CO., LTD
                                         Aluminum Electrolytic Capacitors, since 1975
          11F-1, B, No.93, Tashun 1st Rd, Kaohsiung Taiwan TEL: 886-7-7319008 FAX: 886-7-7315732
                                       Email: [email protected]
