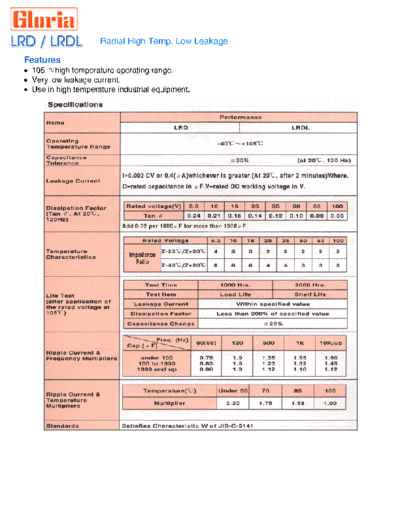

Image preview - the first page of the document
![Gloria [radial thru-hole] LRD-LRDL Series](/pics/5c1ce18584024.gif)
>> Download Gloria [radial thru-hole] LRD-LRDL Series documenatation <<
Text preview - extract from the document
Radial High Temp. Low Leakage.
Features
105 high temperature operating range.
Very low leakage current.
Use in high temperature industrial equipment.
Diagram of Dimensions Lead Spacing and Diameter
Internal Structure
Dimensions and Permissible Ripple Current
105
6.3 10 16 25 35 50 63 100
(8) (13) (20) (32) (44) (63) (79) (125)
DXL mA DXL mA DXL mA DXL mA DXL mA DXL mA DXL mA DXL mA
0.1 OR1 5 x 11 2.0 5 x 11 3.0 5 x 11 3.0
0.22 R22 5 x 11 3.5 5 x 11 4.5 5 x 11 4.5
0.33 R33 5 x 11 5.0 5 x 11 7.5 5 x 11 7.5
0.47 R47 5 x 11 6.0 5 x 11 9.0 5 x 11 9.0
1 010 5 x 11 10 5 x 11 15 5 x 11 15
2.2 2R2 5 x 11 20 5 x 11 25 5 x 11 30
3.3 3R3 5 x 11 37 6.3 x 11 35 6.3 x 11 45
4.7 4R7 5 x 11 35 6.3 x 11 42 6.3 x 11 42 6.3 x 11 49
10 100 5 x 11 52 6.3 x 11 62 6.3 x 11 62 8 x 11.5 73
22 220 5 x 11 65 6.3 x 11 75 6.3 x 11 82 8 x 11.5 102 8 x 11.5 102 8 x 11.5 113
33 330 5 x 11 80 6.3 x 11 92 6.3 x 11 100 8 x 11.5 125 8 x 11.5 129 10 x 16 148
47 470 5 x 11 86 6.3 x 11 102 6.3 x 11 110 8 x 11.5 133 8 x 11.5 148 10 x 16 165 10 x 20 185
100 101 5 x 11 116 5 x 11 130 6.3 x 11 149 8 x 11.5 171 8 x 11.5 194 10 x 16 242 10 x 20 253 13 x 21 304
220 221 6.3 x 11 177 8 x 11.5 214 8 x 11.5 243 10 x 16 293 10 x 20 336 13 x 21 410 13 x 26 428 16 x 26 473
330 331 8 x 11.5 241 8 x 11.5 270 10 x 20 332 10 x 20 376 13 x 21 433 13 x 26 507 16 x 26 542
470 471 8 x 11.5 297 10 x 12.5 346 13 x 21 397 10 x 20 432 13 x 26 540 16 x 26 647 16 x 32 671
1000 102 10 x 16 467 10 x 20 530 13 x 26 637 13 x 26 695 16 x 26 815 16 x 36 971
2200 222 13 x 21 764 13 x 26 866 16 x 36 1022 16 x 32 1016 16 x 36 1246
