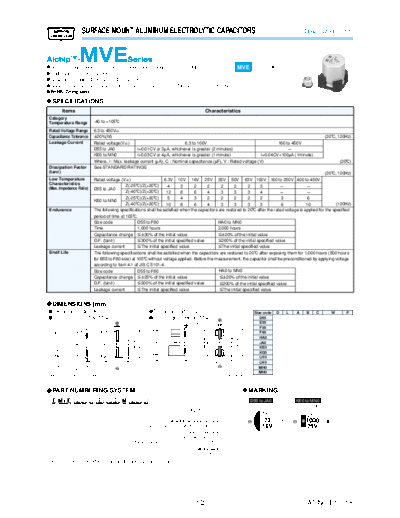

Image preview - the first page of the document
mve


>> Download mve documenatation <<

Text preview - extract from the document
                                SURFACE MOUNT ALUMINUM ELECTROLYTIC CAPACITORS                                                                                               Downsized, 105C




                                                                                                                                                                  MVL
@Rated voltage range : 6.3 to 450V, capacitance range : 1.0 to 6,800MF        MVE                                                                                 MVJ
                                                                                                                                                    Longer life
@Endurance : 1,000 to 2,000 hours at 105C
@Case size range : F4B5.2L to F18B21.5L
@Solvent resistant type except 100 to 450Vdc (see PRECAUTIONS AND GUIDELINES)
@RoHS Compliant

?SPECIFICATIONS
               Items                                                                                                      Characteristics
 Category
 Temperature Range                      -40 to +105C

 Rated Voltage Range                    6.3 to 450Vdc
 Capacitance Tolerance                  P20%(M)                                                                                                                                          (20C, 120Hz)
 Leakage Current                        Rated voltage(Vdc)                             6.3 to 100V                                      160 to 450V
                                        D55 to JA0            I=0.01CV or 3MA, whichever is greater (2 minutes)                              -
                                        KE0 to MN0            I=0.03CV or 4MA, whichever is greater (1 minute)                  I=0.04CV+100MA (1minute)
                                        Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V)                                                                 (20C)
 Dissipation Factor                     See STANDARD RATINGS
 (tane)                                                                                                                                                                (20C, 120Hz)
 Low Temperature                        Rated voltage (Vdc)                    6.3V 10V 16V 25V 35V 50V 63V 100V 160 to 250V 400 to 450V
 Characteristics                                          Z(-25C)/Z(+20C)        4      3      2     2       2      2       2     3          -              -
 (Max. Impedance Ratio)                 D55 to JA0
                                                          Z(-40C)/Z(+20C)       12      8      6     4       3      3       3     4          -              -
                                                          Z(-25C)/Z(+20C)        5      4      3     2       2      2       2     2           3              6
                                        KE0 to MN0
                                                          Z(-40C)/Z(+20C)       10      8      6     4       3      3       3     3           6             10               (120Hz)
 Endurance                              The following specifications shall be satisfied when the capacitors are restored to 20C after the rated voltage is applied for the specified
                                        period of time at 105C.
                                        Size code               D55 to F80                                 HA0 to MN0
                                        Time                    1,000 hours                                2,000 hours
                                        Capacitance change [P30% of the initial value                      [P20% of the initial value
                                        D.F. (tanE)             [300% of the initial specified value       [200% of the initial specified value
                                        Leakage current         [The initial specified value               [The initial specified value
 Shelf Life                             The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 1,000 hours (500 hours
                                        for B55 to F80 size) at 105C without voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage
                                        according to Item 4.1 of JIS C 5101-4.
                                        Size code               D55 to F80                                  HA0 to MN0
                                        Capacitance change [P25% of the initial value                       [P20% of the initial value
                                        D.F. (tanE)             [200% of the initial specified value        [200% of the initial specified value
                                        Leakage current         [The initial specified value                [The initial specified value


?DIMENSIONS [mm]
@Terminal Code : A                                                                         @Terminal Code : G                                       Size code D      L   A    B    C         W         P
@Size code : D55 to MN0                                                                    @Size code : LH0 to MN0                                     D55      4   5.2 4.3 4.3 5.1      0.5 to 0.8   1.0
                                                                                                            0.3max.                W                   E55      5   5.2 5.3 5.3 5.9      0.5 to 0.8   1.4
                                                        W                                                                                              F55     6.3 5.2 6.6 6.6 7.2       0.5 to 0.8   1.9
                                                                                                                                                       F80     6.3 7.7 6.6 6.6 7.2       0.5 to 0.8   1.9
                                                                                                                                                       HA0      8 10.0 8.3 8.3 9.0       0.7 to 1.1   3.1
                                                                                           FDP0.5




                                                                                                                                         CP0.2
                                                                                                                      BP0.2
  FDP0.5




                                                                        CP0.2
                                          BP0.2




                                                                                                                                                               10 10.0 10.3 10.3 11.0    0.7 to 1.1   4.5
                                                                                                                                           P




                                                                                                                                                       JA0
                                                                          P




                                                                                                                                                       KE0    12.5 13.5 13.0 13.0 13.7   1.0 to 1.3   4.2
                                                                                                                                                       KG5    12.5 16.0 13.0 13.0 13.7   1.0 to 1.3   4.2
                                                                                                                                                       LH0     16 16.5 17.0 17.0 18.0    1.0 to 1.3   6.5
                     0.3max.                                                                        LP0.5                      AP0.2                   LN0     16 21.5 17.0 17.0 18.0    1.0 to 1.3   6.5
                                                        AP0.2
                                                                                                                                                       MH0     18 16.5 19.0 19.0 20.0    1.0 to 1.3   6.5
               LP0.3 (Note)
                                                                                                                                                       MN0     18 21.5 19.0 19.0 20.0    1.0 to 1.3   6.5
Note : LP0.5 for HA0 to MN0                                                                                                   : Dummy terminals



?PART NUMBERING SYSTEM                                                                                                                       ?MARKING
    1      2    3   4   5   6   7   8    9    10   11   12   13   14   15   16   17   18

  E MV E AAA A AA AAA M AAA N                                                                                                                     D55 to JA0             KE0 to MN0
                                                                                                                                                  Ex)16V22MF            Ex)25V1,000MF
                                                                                                     Supplement code                                                           0V
                                                                                                             Size code                                      7hE                  MVE
                                                                                            Capacitance tolerance code                                   22                   1000
                                                                          Capacitance code (ex. 4.7MF:4R7,100MF:101)                                    16V                   25V
                                                                                                     Taping
