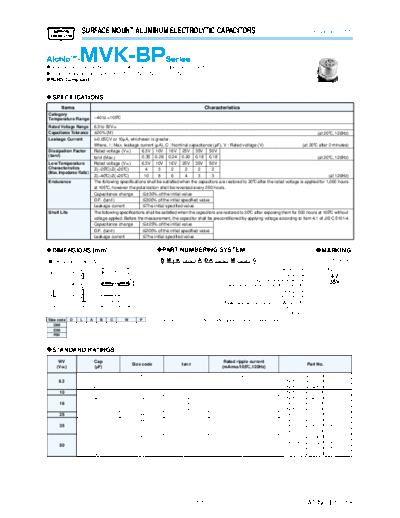

Image preview - the first page of the document
>> Download mvk_bipolar documenatation <<
Text preview - extract from the document
SURFACE MOUNT ALUMINUM ELECTROLYTIC CAPACITORS Bi-polar, 105C
@Bi-polar chip type for the circuit, of which polarity is frequently reversed
@Solvent resistant type (see PRECAUTIONS AND GUIDELINES)
@RoHS Compliant
?SPECIFICATIONS
Items Characteristics
Category
Temperature Range -40 to +105C
Rated Voltage Range 6.3 to 50Vdc
Capacitance Tolerance P20% (M) (at 20C, 120Hz)
Leakage Current I=0.05CV or 10MA, whichever is greater.
Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V) (at 20C after 2 minutes)
Dissipation Factor Rated voltage (Vdc) 6.3V 10V 16V 25V 35V 50V
(tane) tanE (Max.) 0.35 0.26 0.24 0.20 0.18 0.18 (at 20C, 120Hz)
Low Temperature Rated voltage (Vdc) 6.3V 10V 16V 25V 35V 50V
Characteristics Z(-25C)/Z(+20C) 4 3 2 2 2 2
(Max. Impedance Ratio)
Z(-40C)/Z(+20C) 10 8 6 4 3 3 (at 120Hz)
Endurance The following specifications shall be satisfied when the capacitors are restored to 20C after the rated voltage is applied for 1,000 hours
at 105C, however the polarization shall be reversed every 250 hours.
Capacitance change [P30% of the initial value
D.F. (tanE) [300% of the initial specified value
Leakage current [The initial specified value
Shelf Life The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 500 hours at 105C without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Capacitance change [P25% of the initial value
D.F. (tanE) [200% of the initial specified value
Leakage current [The initial specified value
?DIMENSIONS [mm] ?PART NUMBERING SYSTEM ?MARKING
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
@Terminal Code : A B MV K AAA A DA AAA M AAA G EX) 35V4.7MF
BP0.2
Supplement code 94K
Size code 4.7
FDP0.5
Capacitance tolerance code
W
AP0.2
Capacitance code (ex. 4.7MF:4R7,10MF:100)
35V
Taping code
Terminal code
P
0.3max. Voltage code (ex. 6.3V:6R3,10V:100,50V:500)
CP0.2
Series code
LP0.3
Category
Size code D L A B C W P Please refer to "Product code guide (surface mount type)"
D60 4 5.7 4.3 4.3 5.1 0.5 to 0.8 1.0
E60 5 5.7 5.3 5.3 5.9 0.5 to 0.8 1.4
F60 6.3 5.7 6.6 6.6 7.2 0.5 to 0.8 1.9
?STANDARD RATINGS
WV Cap Rated ripple current
Size code tane Part No.
(Vdc) (mF) (mArms/105c,120Hz)
10 D60 0.35 14 BMVK6R3ADA100MD60G
6.3 22 E60 0.35 25 BMVK6R3ADA220ME60G
47 F60 0.35 39 BMVK6R3ADA470MF60G
10 33 F60 0.26 35 BMVK100ADA330MF60G
4.7 D60 0.24 12 BMVK160ADA4R7MD60G
16 10 E60 0.24 20 BMVK160ADA100ME60G
22 F60 0.24 32 BMVK160ADA220MF60G
25 3.3 D60 0.20 10 BMVK250ADA3R3MD60G
2.2 D60 0.18 8.8 BMVK350ADA2R2MD60G
35 4.7 E60 0.18 15 BMVK350ADA4R7ME60G
10 F60 0.18 23 BMVK350ADA100MF60G
1.0 D60 0.18 5.5 BMVK500ADA1R0MD60G
2.2 E60 0.18 10 BMVK500ADA2R2ME60G
50
3.3 E60 0.18 13 BMVK500ADA3R3ME60G
4.7 F60 0.18 16 BMVK500ADA4R7MF60G
(1/1) CAT. No. E1001K
