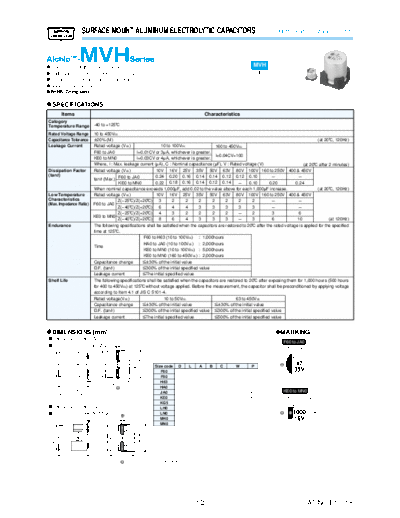

Image preview - the first page of the document
>> Download mvh documenatation <<
Text preview - extract from the document
SURFACE MOUNT ALUMINUM ELECTROLYTIC CAPACITORS High heat resistance, 125C
@Lower ESR, Higher ripple current MVH
@Endurance : 1,000 to 5,000 hours at 125C
125C
@Suitable to fit for automotive equipment
@Solvent resistant type (10 to 50V) MVE
@RoHS Compliant
?SPECIFICATIONS
Items Characteristics
Category
Temperature Range -40 to +125C
Rated Voltage Range 10 to 450Vdc
Capacitance Tolerance P20% (M) (at 20C, 120Hz)
Leakage Current Rated voltage (Vdc) 10 to 100Vdc 160 to 450Vdc
F60 to JA0 I=0.01CV or 3MA, whichever is greater.
I=0.04CV+100
KE0 to MN0 I=0.03CV or 4MA, whichever is greater.
Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V) (at 20C after 2 minutes)
Dissipation Factor Rated voltage (Vdc) 10V 16V 25V 35V 50V 63V 80V 100V 160 to 250V 400 & 450V
(tane) F60 to JA0 0.24 0.20 0.16 0.14 0.14 0.12 0.12 0.10 - -
tanE (Max.)
KE0 to MN0 0.22 0.18 0.16 0.14 0.12 0.14 - 0.10 0.20 0.24
When nominal capacitance exceeds 1,000MF, add 0.02 to the value above for each 1,000MF increase. (at 20C, 120Hz)
Low Temperature Rated voltage (Vdc) 10V 16V 25V 35V 50V 63V 80V 100V 160 to 250V 400 & 450V
Characteristics Z(-25C)/Z(+20C) 3 2 2 2 2 2 2 2 - -
(Max. Impedance Ratio) F60 to JA0
Z(-40C)/Z(+20C) 6 4 4 3 3 3 3 3 - -
Z(-25C)/Z(+20C) 4 3 2 2 2 2 - 2 3 6
KE0 to MN0
Z(-40C)/Z(+20C) 8 6 4 3 3 3 - 3 6 10 (at 120Hz)
Endurance The following specifications shall be satisfied when the capacitors are restored to 20C after the rated voltage is applied for the specified
time at 125C.
F60 to H63 (10 to 100Vdc) : 1,000hours
HA0 to JA0 (10 to 100Vdc) : 2,000hours
Time
KE0 to MN0 (10 to 100Vdc) : 5,000hours
KE0 to MN0 (160 to 450Vdc) : 2,000hours
Capacitance change [P30% of the initial value
D.F. (tanE) [300% of the initial specified value
Leakage current [The initial specified value
Shelf Life The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 1,000 hours (500 hours
for 400 to 450Vdc) at 125C without voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage
according to Item 4.1 of JIS C 5101-4.
Rated voltage(Vdc) 10 to 50Vdc 63 to 450Vdc
Capacitance change [P30% of the initial value [P30% of the initial value
D.F. (tanE) [300% of the initial specified value [300% of the initial specified value
Leakage current [The initial specified value [500% of the initial specified value
?DIMENSIONS [mm] ?MARKING
@Terminal Code : A F60 to JA0
@Size code : F60 to MN0 EX) 35V47MF
W
74H
FDP0.5
CP0.2
BP0.2
47
P
Size code D L A B C W P
F60 6.3 5.7 6.6 6.6 7.2 0.5 to 0.8 1.9 35V
F80 6.3 7.7 6.6 6.6 7.2 0.5 to 0.8 1.9
H63 8 6.3 8.3 8.3 9.0 0.5 to 0.8 2.3
0.3max. AP0.2
HA0 8 10.0 8.3 8.3 9.0 0.7 to 1.1 3.1
LP0.5 (Note) KE0 to MN0
JA0 10 10.0 10.3 10.3 11.0 0.7 to 1.1 4.5
Note : LP0.3 for F60 and F80
KE0 12.5 13.5 13.0 13.0 13.7 1.0 to 1.3 4.2 EX) 16V1,000MF
KG5 12.5 16.0 13.0 13.0 13.7 1.0 to 1.3 4.2 0V
@Terminal Code : G LH0 16 16.5 17.0 17.0 18.0 1.0 to 1.3 6.5 MVH
@Size code : LH0 to MN0 LN0 16 21.5 17.0 17.0 18.0 1.0 to 1.3 6.5 1000
0.3max. W MH0 18 16.5 19.0 19.0 20.0 1.0 to 1.3 6.5 16V
MN0 18 21.5 19.0 19.0 20.0 1.0 to 1.3 6.5
FDP0.5
CP0.2
BP0.2
P
LP0.5 AP0.2
: Dummy terminals
(1/2) CAT. No. E1001K
SURFACE MOUNT ALUMINUM ELECTROLYTIC CAPACITORS High heat resistance, 125C
?PART NUMBERING SYSTEM
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
E MV H AAA A AA AAA M AAA N
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex. 4.7MF:4R7,10MF:100)
