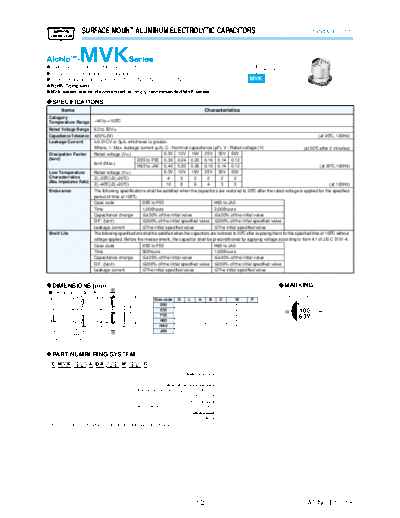

Image preview - the first page of the document
>> Download mvk documenatation <<
Text preview - extract from the document
SURFACE MOUNT ALUMINUM ELECTROLYTIC CAPACITORS Standard, 105C
MVE
@Endurance : 1,000 to 2,000 hours at 105C Downsized
@Suitable to fit for downsized equipment
@Solvent resistant type (see PRECAUTIONS AND GUIDELINES) MVK
@RoHS Compliant
@MVK series will be discontinued, strongly recommended MVE series
?SPECIFICATIONS
Items Characteristics
Category
Temperature Range -40 to +105C
Rated Voltage Range 6.3 to 50Vdc
Capacitance Tolerance P20% (M) (at 20C, 120Hz)
Leakage Current I=0.01CV or 3MA, whichever is greater.
Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V) (at 20C after 2 minutes)
Dissipation Factor Rated voltage (Vdc) 6.3V 10V 16V 25V 35V 50V
(tane) D55 to F55 0.30 0.24 0.20 0.16 0.14 0.12
tanE (Max.)
H63 to JA0 0.40 0.30 0.26 0.16 0.14 0.12 (at 20C,120Hz)
Low Temperature Rated voltage (Vdc) 6.3V 10V 16V 25V 35V 50V
Characteristics Z(-25C)/Z(+20C) 4 3 2 2 2 2
(Max. Impedance Ratio)
Z(-40C)/Z(+20C) 10 8 6 4 3 3 (at 120Hz)
Endurance The following specifications shall be satisfied when the capacitors are restored to 20C after the rated voltage is applied for the specified
period of time at 105C.
Case code D55 to F55 H63 to JA0
Time 1,000hours 2,000hours
Capacitance change [P30% of the initial value [P20% of the initial value
D.F. (tanE) [300% of the initial specified value [200% of the initial specified value
Leakage current [The initial specified value [The initial specified value
Shelf Life The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for the specified time at 105C without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Case code D55 to F55 H63 to JA0
Time 500hours 1,000hours
Capacitance change [P25% of the initial value [P20% of the initial value
D.F. (tanE) [200% of the initial specified value [200% of the initial specified value
Leakage current [The initial specified value [The initial specified value
?DIMENSIONS [mm] ?MARKING
@Terminal Code : A W EX) 6.3V100MF
Size code D L A B C W P
D55 4 5.2 4.3 4.3 5.1 0.5 to 0.8 1.0 7hK
FDP0.5
CP0.2
BP0.2
100
P
E55 5 5.2 5.3 5.3 5.9 0.5 to 0.8 1.4
F55 6.3 5.2 6.6 6.6 7.2 0.5 to 0.8 1.9
6.3V
H63 8 6.3 8.3 8.3 9.0 0.5 to 0.8 2.3
HA0 8 10.0 8.3 8.3 9.0 0.7 to 1.1 3.1
0.3max. AP0.2 JA0 10 10.0 10.3 10.3 11.0 0.7 to 1.1 4.5
LP0.3 (Note)
Note : LP0.5 for H63 to JA0
?PART NUMBERING SYSTEM
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
E MV K AAA A DA AAA M AAA G
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex. 4.7MF:4R7,10MF:100)
Taping code
Terminal code
Voltage code (ex. 6.3V:6R3,10V:100,50V:500)
Series code
Category
Please refer to "Product code guide (surface mount type)"
(1/2) CAT. No. E1001K
SURFACE MOUNT ALUMINUM ELECTROLYTIC CAPACITORS Standard, 105C
?STANDARD RATINGS
Rated ripple Rated ripple
WV Cap current WV Cap current
Case code tane Part No. Case code tane Part No.
(Vdc) (mF) (mArms/ (Vdc) (mF) (mArms/
105c,120Hz) 105c,120Hz)
22 D55 0.30 21 EMVK6R3ADA220MD55G 4.7 D55 0.14 15 EMVK350ADA4R7MD55G
47 E55 0.30 36 EMVK6R3ADA470ME55G 10 E55 0.14 25 EMVK350ADA100ME55G
6.3 100 F55 0.30 56 EMVK6R3ADA101MF55G 35 22 F55 0.14 40 EMVK350ADA220MF55G
330 HA0 0.40 290 EMVK6R3ADA331MHA0G 33 H63 0.14 80 EMVK350ADA330MH63G
1,000 JA0 0.40 410 EMVK6R3ADA102MJA0G 220 JA0 0.14 375 EMVK350ADA221MJA0G
33 E55 0.24 34 EMVK100ADA330ME55G 1.0 D55 0.12 5.6 EMVK500ADA1R0MD55G
10 100 H63 0.30 90 EMVK100ADA101MH63G 2.2 D55 0.12 10 EMVK500ADA2R2MD55G
220 HA0 0.30 180 EMVK100ADA221MHA0G 3.3 D55 0.12 14 EMVK500ADA3R3MD55G
10 D55 0.20 16 EMVK160ADA100MD55G 4.7 E55 0.12 19 EMVK500ADA4R7ME55G
22 E55 0.20 30 EMVK160ADA220ME55G 50 10 F55 0.12 29 EMVK500ADA100MF55G
16
47 F55 0.20 48 EMVK160ADA470MF55G 22 H63 0.12 70 EMVK500ADA220MH63G
470 JA0 0.26 460 EMVK160ADA471MJA0G 33 HA0 0.12 140 EMVK500ADA330MHA0G
33 F55 0.16 45 EMVK250ADA330MF55G 47 HA0 0.12 170 EMVK500ADA470MHA0G
47 H63 0.16 80 EMVK250ADA470MH63G 100 JA0 0.12 310 EMVK500ADA101MJA0G
25
100 HA0 0.16 180 EMVK250ADA101MHA0G
330 JA0 0.16 450 EMVK250ADA331MJA0G
(2/2) CAT. No. E1001K
