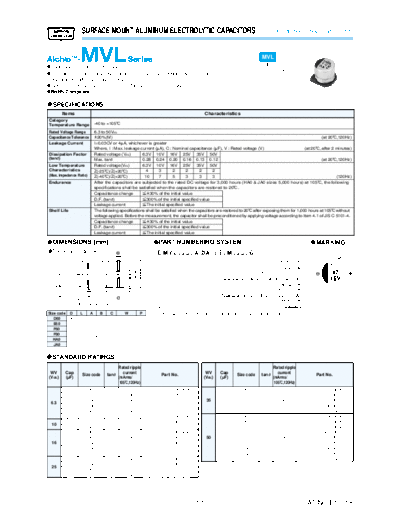

Image preview - the first page of the document
>> Download mvl documenatation <<
Text preview - extract from the document
SURFACE MOUNT ALUMINUM ELECTROLYTIC CAPACITORS 3000 to 5000-hours-life, 105C
MVL
@Endurance : 3,000 to 5,000 hours at 105C
Longer life
@Suitable for applications requiring long life such as continuously operating
equipment, industrial applications, etc MVJ
@Solvent resistant type (see PRECAUTIONS AND GUIDELINES)
@RoHS Compliant
?SPECIFICATIONS
Items Characteristics
Category
Temperature Range -40 to +105C
Rated Voltage Range 6.3 to 50Vdc
Capacitance Tolerance P20%(M) (at 20C,120Hz)
Leakage Current I=0.03CV or 4MA, whichever is greater
Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V) (at 20C, after 2 minutes)
Dissipation Factor Rated voltage (Vdc) 6.3V 10V 16V 25V 35V 50V
(tane) Max. tanE 0.28 0.24 0.20 0.16 0.13 0.12 (at 20C,120Hz)
Low Temperature Rated voltage(Vdc) 6.3V 10V 16V 25V 35V 50V
Characteristics Z(-25C)/Z(+20C) 4 3 2 2 2 2
(Max. impedance Ratio) Z(-40C)/Z(+20C) 10 7 5 3 3 3 (120Hz)
Endurance After the capacitors are subjected to the rated DC voltage for 3,000 hours (HA0 & JA0 sizes 5,000 hours) at 105C, the following
specifications shall be satisfied when the capacitors are restored to 20C.
Capacitance change [P30% of the initial value
D.F. (tanE) [300% of the initial specified value
Leakage current [The initial specified value
Shelf Life The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 1,000 hours at 105C without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Capacitance change [P30% of the initial value
D.F. (tanE) [300% of the initial specified value
Leakage current [The initial specified value
?DIMENSIONS [mm] ?PART NUMBERING SYSTEM ?MARKING
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
@Terminal Code : A E MV L AAA A DA AAA M AAA G
W EX) 16V47MF
Supplement code
Size code 9hL
FDP0.5
CP0.2
BP0.2
Capacitance tolerance code 47
P
Capacitance code (ex. 4.7MF:4R7,10MF:100) 16V
Taping code
Terminal code
0.3max. AP0.2 Voltage code (ex. 6.3V:6R3,10V:100,50V:500)
LP0.3 (Note) Series code
Note : LP0.5 for HA0 and JA0 Category
Size code D L A B C W P Please refer to "Product code guide (surface mount type)"
D60 4 5.7 4.3 4.3 5.1 0.5 to 0.8 1.0
E60 5 5.7 5.3 5.3 5.9 0.5 to 0.8 1.4
F60 6.3 5.7 6.6 6.6 7.2 0.5 to 0.8 1.9
F80 6.3 7.7 6.6 6.6 7.2 0.5 to 0.8 1.9
HA0 8 10.0 8.3 8.3 9.0 0.7 to 1.1 3.1
JA0 10 10.0 10.3 10.3 11.0 0.7 to 1.1 4.5
?STANDARD RATINGS
Rated ripple Rated ripple
WV Cap current WV Cap current
Size code tane Part No. Size code tane Part No.
(Vdc) (mF) (mArms/ (Vdc) (mF) (mArms/
105c,120Hz) 105c,120Hz)
22 D60 0.28 22 EMVL6R3ADA220MD60G 4.7 D60 0.13 15 EMVL350ADA4R7MD60G
47 E60 0.28 36 EMVL6R3ADA470ME60G 10 E60 0.13 25 EMVL350ADA100ME60G
100 F60 0.28 60 EMVL6R3ADA101MF60G 35 22 F60 0.13 42 EMVL350ADA220MF60G
6.3
220 F80 0.28 101 EMVL6R3ADA221MF80G 33 F80 0.13 57 EMVL350ADA330MF80G
330 HA0 0.28 160 EMVL6R3ADA331MHA0G 220 JA0 0.13 216 EMVL350ADA221MJA0G
1,000 JA0 0.28 313 EMVL6R3ADA102MJA0G 1.0 D60 0.12 6.2 EMVL500ADA1R0MD60G
33 E60 0.24 35 EMVL100ADA330ME60G 2.2 D60 0.12 11 EMVL500ADA2R2MD60G
10
220 HA0 0.24 141 EMVL100ADA221MHA0G 3.3 D60 0.12 14 EMVL500ADA3R3MD60G
10 D60 0.20 18 EMVL160ADA100MD60G 4.7 E60 0.12 19 EMVL500ADA4R7ME60G
22 E60 0.20 30 EMVL160ADA220ME60G 50 10 F60 0.12 30 EMVL500ADA100MF60G
16 47 F60 0.20 50 EMVL160ADA470MF60G 22 F80 0.12 49 EMVL500ADA220MF80G
100 F80 0.20 81 EMVL160ADA101MF80G 33 HA0 0.12 77 EMVL500ADA330MHA0G
470 JA0 0.20 254 EMVL160ADA471MJA0G 47 HA0 0.12 92 EMVL500ADA470MHA0G
33 F60 0.16 48 EMVL250ADA330MF60G 100 JA0 0.12 151 EMVL500ADA101MJA0G
47 F80 0.16 63 EMVL250ADA470MF80G
25
100 HA0 0.16 116 EMVL250ADA101MHA0G
330 JA0 0.16 238 EMVL250ADA331MJA0G
(1/1) CAT. No. E1001K
