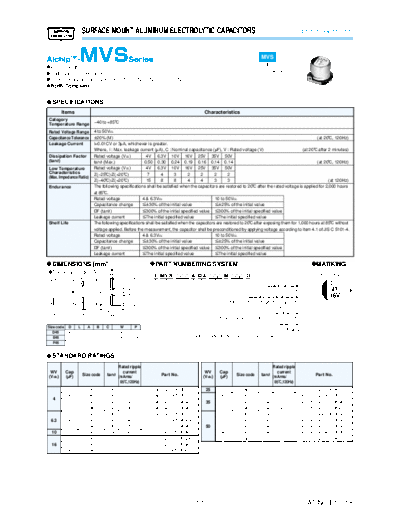

Image preview - the first page of the document
>> Download mvs documenatation <<
Text preview - extract from the document
SURFACE MOUNT ALUMINUM ELECTROLYTIC CAPACITORS 4.5mm height, 85C
MVS
@4.5mm height
Low profile
@Endurance : 2,000 hours at 85C
@Solvent resistant type (see PRECAUTIONS AND GUIDELINES) MVA
@RoHS Compliant
?SPECIFICATIONS
Items Characteristics
Category
Temperature Range -40 to +85C
Rated Voltage Range 4 to 50Vdc
Capacitance Tolerance P20% (M) (at 20C, 120Hz)
Leakage Current I=0.01CV or 3MA, whichever is greater.
Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V) (at 20C after 2 minutes)
Dissipation Factor Rated voltage (Vdc) 4V 6.3V 10V 16V 25V 35V 50V
(tane) tanE (Max.) 0.50 0.30 0.24 0.19 0.16 0.14 0.14 (at 20C, 120Hz)
Low Temperature Rated voltage (Vdc) 4V 6.3V 10V 16V 25V 35V 50V
Characteristics Z(-25C)/Z(+20C) 7 4 3 2 2 2 2
(Max. Impedance Ratio)
Z(-40C)/Z(+20C) 15 8 8 4 4 3 3 (at 120Hz)
Endurance The following specifications shall be satisfied when the capacitors are restored to 20C after the rated voltage is applied for 2,000 hours
at 85C.
Rated voltage 4 & 6.3Vdc 10 to 50Vdc
Capacitance change [P30% of the initial value [P25% of the initial value
DF (tanE) [300% of the initial specified value [300% of the initial specified value
Leakage current [The initial specified value [The initial specified value
Shelf Life The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 1,000 hours at 85C without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Rated voltage 4 & 6.3Vdc 10 to 50Vdc
Capacitance change [P30% of the initial value [P25% of the initial value
DF (tanE) [300% of the initial specified value [300% of the initial specified value
Leakage current [The initial specified value [The initial specified value
?DIMENSIONS [mm] ?PART NUMBERING SYSTEM ?MARKING
@Terminal Code : A 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
EX) 16V47MF
W E MV S AAA A DA AAA M AAA G
7hS
Supplement code
FDP0.5
CP0.2
BP0.2
Size code 47
P
Capacitance tolerance code 16V
Capacitance code (ex. 4.7MF:4R7,10MF:100)
Taping code
0.3max. AP0.2 Terminal code
L+0.1/-0.2 Voltage code (ex. 6.3V:6R3,10V:100,50V:500)
Series code
Size code D L A B C W P Category
D46 4 4.5 4.3 4.3 5.1 0.5 to 0.8 1.0
E46 5 4.5 5.3 5.3 5.9 0.5 to 0.8 1.4 Please refer to "Product code guide (surface mount type)"
F46 6.3 4.5 6.6 6.6 7.2 0.5 to 0.8 1.9
?STANDARD RATINGS
Rated ripple Rated ripple
WV Cap current WV Cap current
Size code tane Part No. Size code tane Part No.
(Vdc) (mF) (mArms/ (Vdc) (mF) (mArms/
85c,120Hz) 85c,120Hz)
33 D46 0.50 28 EMVS4R0ADA330MD46G 25 33 F46 0.16 52 EMVS250ADA330MF46G
47 D46 0.50 33 EMVS4R0ADA470MD46G 4.7 D46 0.14 18 EMVS350ADA4R7MD46G
4
100 E46 0.50 56 EMVS4R0ADA101ME46G 35 10 E46 0.14 29 EMVS350ADA100ME46G
220 F46 0.50 96 EMVS4R0ADA221MF46G 22 F46 0.14 46 EMVS350ADA220MF46G
22 D46 0.30 28 EMVS6R3ADA220MD46G 1.0 D46 0.14 8.4 EMVS500ADA1R0MD46G
6.3 47 E46 0.30 45 EMVS6R3ADA470ME46G 2.2 D46 0.14 13 EMVS500ADA2R2MD46G
100 F46 0.30 70 EMVS6R3ADA101MF46G 50 3.3 D46 0.14 17 EMVS500ADA3R3MD46G
10 33 E46 0.24 41 EMVS100ADA330ME46G 4.7 E46 0.14 20 EMVS500ADA4R7ME46G
10 D46 0.19 23 EMVS160ADA100MD46G 10 F46 0.14 33 EMVS500ADA100MF46G
16 22 E46 0.19 37 EMVS160ADA220ME46G
47 F46 0.19 58 EMVS160ADA470MF46G
(1/1) CAT. No. E1001K
