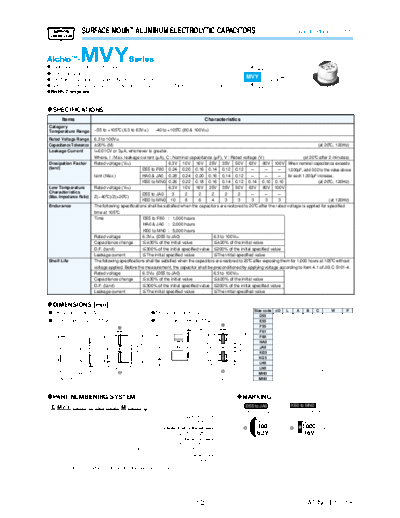

Image preview - the first page of the document
mvy


>> Download mvy documenatation <<

Text preview - extract from the document
                                   SURFACE MOUNT ALUMINUM ELECTROLYTIC CAPACITORS                                                                                               Low impedance, 105C



                                                                                                                                                        MZA
@Endurance : 1,000 to 5,000 hours at 105C                                                                                                                 Lower Z
@Low impedance
@For digital equipment, especially DC-DC converters
                                                                                                                                                        MVY     Longer life
                                                                                                                                                                              MLA

@Solvent resistant type except 80 & 100Vdc (see PRECAUTIONS AND GUIDELINES)                                                                               Lower Z
@RoHS Compliant                                                                                                                                         MVE



?SPECIFICATIONS
                   Items                                                                                                      Characteristics
Category
Temperature Range                          -55 to +105C (6.3 to 63Vdc)                             -40 to +105C (80 & 100Vdc)

Rated Voltage Range                        6.3 to 100Vdc
Capacitance Tolerance                      P20% (M)                                                                                                                   (at 20C, 120Hz)
Leakage Current                            I=0.01CV or 3MA, whichever is greater.
                                           Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V)                          (at 20C after 2 minutes)
Dissipation Factor                         Rated voltage (Vdc)                        6.3V 10V 16V 25V 35V 50V 63V 80V 100V When nominal capacitance exceeds
(tane)                                                                D55 to F80 0.24 0.20 0.16 0.14 0.12 0.12                     -      -     - 1,000MF, add 0.02 to the value above
                                           tanE (Max.)                HA0 & JA0 0.28 0.24 0.20 0.16 0.14 0.12                      -      -     - for each 1,000MF increase.
                                                                      KE0 to MN0 0.26 0.22 0.18 0.16 0.14 0.12 0.14 0.10 0.10                                         (at 20C, 120Hz)
Low Temperature                            Rated voltage (Vdc)                        6.3V 10V 16V 25V 35V 50V 63V 80V 100V
Characteristics                                                       D55 to JA0        3     2      2       2       2      2      -      -     -
(Max. Impedance Ratio)                     Z(-40C)/Z(+20C)
                                                                      KE0 to MN0 10           8      6       4       3      3      3       3     3                          (at 120Hz)
Endurance                                  The following specifications shall be satisfied when the capacitors are restored to 20C after the rated voltage is applied for specified
                                           time at 105C.
                                           Time                       D55 to F80 : 1,000 hours
                                                                      HA0 & JA0 : 2,000 hours
                                                                      KE0 to MN0 : 5,000 hours
                                           Rated voltage              6.3Vdc (D55 to JA0)                     6.3 to 100Vdc
                                           Capacitance change         [P30% of the initial value              [P20% of the initial value
                                           D.F. (tanE)                [300% of the initial specified value [200% of the initial specified value
                                           Leakage current            [The initial specified value            [The initial specified value
Shelf Life                                 The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 1,000 hours at 105C without
                                           voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
                                           Rated voltage              6.3Vdc (D55 to JA0)                     6.3 to 100Vdc
                                           Capacitance change         [P30% of the initial value              [P20% of the initial value
                                           D.F. (tanE)                [300% of the initial specified value [200% of the initial specified value
                                           Leakage current            [The initial specified value            [The initial specified value


?DIMENSIONS [mm]
                                                                                                                                                          Size code FD     L   A    B    C          W         P
@Terminal Code : A                                                                              @Terminal Code : G                                           D55      4   5.2 4.3 4.3 5.1       0.5 to 0.8   1.0
@Size code : D55 to MN0                                                                         @Size code : LH0 to MN0                                      E55      5   5.2 5.3 5.3 5.9       0.5 to 0.8   1.4
                                                                                                                    0.3max.                W                 F55     6.3 5.2 6.6 6.6 7.2        0.5 to 0.8   1.9
                                                                                                                                                             F61     6.3 5.8 6.6 6.6 7.2        0.5 to 0.8   1.9
                                                                  W
                                                                                                                                                             F80     6.3 7.7 6.6 6.6 7.2        0.5 to 0.8   1.9
                                                                                                                                                             HA0      8 10.0 8.3 8.3 9.0        0.7 to 1.1   3.1
                                                                                                FDP0.5




                                                                                                                                                CP0.2
                                                                                                                              BP0.2
      FDP0.5




                                                                                 CP0.2
                                                BP0.2




                                                                                                                                                             JA0     10 10.0 10.3 10.3 11.0     0.7 to 1.1   4.5
                                                                                                                                                  P
                                                                                   P




                                                                                                                                                             KE0    12.5 13.5 13.0 13.0 13.7    1.0 to 1.3   4.2
                                                                                                                                                             KG5    12.5 16.0 13.0 13.0 13.7    1.0 to 1.3   4.2
                                                                                                                                                             LH0     16 16.5 17.0 17.0 18.0     1.0 to 1.3   6.5
                         0.3max.                                  AP0.2                                  LP0.5                         AP0.2                 LN0     16 21.5 17.0 17.0 18.0     1.0 to 1.3   6.5
                   LP0.3 (Note)                                                                                                                              MH0     18 16.5 19.0 19.0 20.0     1.0 to 1.3   6.5
      Note : LP0.5 for HA0 to MN0                                                                                                     : Dummy terminals      MN0     18 21.5 19.0 19.0 20.0     1.0 to 1.3   6.5



?PART NUMBERING SYSTEM                                                                                                                          ?MARKING
  1            2   3   4   5   6   7   8    9   10      11   12   13   14   15   16   17   18

 E MV Y AAA A AA AAA M AAA N                                                                                                                        D55 to JA0                 KE0 to MN0
                                                                                                                                                    EX) 6.3V100MF              EX) 16V1,000MF
                                                                                                       Supplement code                                                               0V
                                                                                                               Size code                                        7hY                    MVY
                                                                                              Capacitance tolerance code                                      100                   1000
                                                                             Capacitance code (ex. 4.7MF:4R7,10MF:100)                                        6.3V                  16V
                                                                                                       Taping
