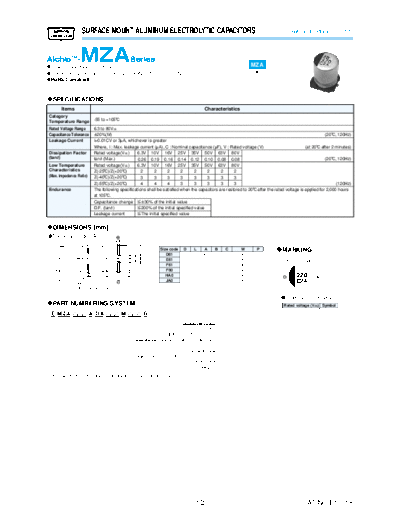

Image preview - the first page of the document
>> Download mza documenatation <<
Text preview - extract from the document
SURFACE MOUNT ALUMINUM ELECTROLYTIC CAPACITORS Lower impedance, 105C
@Lowest impedance, 2,000 hours at 105C MZA
@Solvent resistant type (see PRECAUTIONS AND GUIDELINES) Lower Z
@RoHS Compliant MVY
?SPECIFICATIONS
Items Characteristics
Category
Temperature Range -55 to +105C
Rated Voltage Range 6.3 to 80Vdc
Capacitance Tolerance P20%(M) (20C, 120Hz)
Leakage Current I=0.01CV or 3MA, whichever is greater
Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V) (at 20C after 2 minutes)
Dissipation Factor Rated voltage(Vdc) 6.3V 10V 16V 25V 35V 50V 63V 80V
(tane) tanE (Max.) 0.26 0.19 0.16 0.14 0.12 0.10 0.08 0.08 (20C, 120Hz)
Low Temperature Rated voltage(Vdc) 6.3V 10V 16V 25V 35V 50V 63V 80V
Characteristics Z(-25C)/Z(+20C) 2 2 2 2 2 2 2 2
(Max. impedance Ratio) Z(-40C)/Z(+20C) 3 3 3 3 3 3 3 3
Z(-55C)/Z(+20C) 4 4 4 3 3 3 3 3 (120Hz)
Endurance The following specifications shall be satisfied when the capacitors are restored to 20C after the rated voltage is applied for 2,000 hours
at 105C.
Capacitance change [P30% of the initial value
D.F. (tanE) [200% of the initial specified value
Leakage current [The initial specified value
?DIMENSIONS [mm]
@Terminal Code : A
W
Size code D L A B C W P ?MARKING
FDP0.5
D61 4 5.8 4.3 4.3 5.1 0.5 to 0.8 1.0
CP0.2
BP0.2
P
E61 5 5.8 5.3 5.3 5.9 0.5 to 0.8 1.4 EX) 16V220MF
F61 6.3 5.8 6.6 6.6 7.2 0.5 to 0.8 1.9
F80 6.3 7.7 6.6 6.6 7.2 0.5 to 0.8 1.9 2j
0.3max. AP0.2
HA0 8 10.0 8.3 8.3 9.0 0.7 to 1.1 3.1 220
LP0.3 (Note)
JA0 10 10.0 10.3 10.3 11.0 0.7 to 1.1 4.5 CZA
Note : LP0.5 for HA0 and JA0
@Rated voltage symbol
?PART NUMBERING SYSTEM Rated voltage (Vdc) Symbol
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
6.3 j
E MZA AAA A DA AAA M AAA G 10 A
Supplement code 16 C
Size code 25 E
35 V
Capacitance tolerance code
50 H
Capacitance code (ex. 4.7MF:4R7,10MF:100)
63 J
Taping code
80 K
Terminal code
Voltage code (ex. 6.3V:6R3,10V:100,50V:500)
Series code
Category
Please refer to "Product code guide (surface mount type)"
(1/2) CAT. No. E1001K
SURFACE MOUNT ALUMINUM ELECTROLYTIC CAPACITORS Lower impedance, 105C
?STANDARD RATINGS
Impedance Rated ripple current
WV(Vdc) Cap(mF) Size code tane Part No.
(omax/20c, 100kHz) (mArms/105c, 100kHz)
22 D61 0.26 1.35 90 EMZA6R3ADA220MD61G
47 D61 0.26 1.35 90 EMZA6R3ADA470MD61G
47 E61 0.26 0.70 160 EMZA6R3ADA470ME61G
100 E61 0.26 0.70 160 EMZA6R3ADA101ME61G
100 F61 0.26 0.36 240 EMZA6R3ADA101MF61G
6.3
220 F61 0.26 0.36 240 EMZA6R3ADA221MF61G
330 F80 0.26 0.34 280 EMZA6R3ADA331MF80G
470 HA0 0.26 0.16 600 EMZA6R3ADA471MHA0G
1,000 HA0 0.26 0.16 600 EMZA6R3ADA102MHA0G
1,500 JA0 0.26 0.08 850 EMZA6R3ADA152MJA0G
22 D61 0.19 1.35 90 EMZA100ADA220MD61G
33 D61 0.19 1.35 90 EMZA100ADA330MD61G
33 E61 0.19 0.70 160 EMZA100ADA330ME61G
220 F80 0.19 0.34 280 EMZA100ADA221MF80G
10
330 HA0 0.19 0.16 600 EMZA100ADA331MHA0G
470 HA0 0.19 0.16 600 EMZA100ADA471MHA0G
680 HA0 0.19 0.16 600 EMZA100ADA681MHA0G
1,000 JA0 0.19 0.08 850 EMZA100ADA102MJA0G
10 D61 0.16 1.35 90 EMZA160ADA100MD61G
22 D61 0.16 1.35 90 EMZA160ADA220MD61G
22 E61 0.16 0.70 160 EMZA160ADA220ME61G
47 E61 0.16 0.70 160 EMZA160ADA470ME61G
47 F61 0.16 0.36 240 EMZA160ADA470MF61G
16
100 F61 0.16 0.36 240 EMZA160ADA101MF61G
220 F80 0.16 0.34 280 EMZA160ADA221MF80G
330 HA0 0.16 0.16 600 EMZA160ADA331MHA0G
470 HA0 0.16 0.16 600 EMZA160ADA471MHA0G
680 JA0 0.16 0.08 850 EMZA160ADA681MJA0G
10 D61 0.14 1.35 90 EMZA250ADA100MD61G
22 E61 0.14 0.70 160 EMZA250ADA220ME61G
33 E61 0.14 0.70 160 EMZA250ADA330ME61G
33 F61 0.14 0.36 240 EMZA250ADA330MF61G
25 47 F61 0.14 0.36 240 EMZA250ADA470MF61G
100 F80 0.14 0.34 280 EMZA250ADA101MF80G
220 HA0 0.14 0.16 600 EMZA250ADA221MHA0G
330 HA0 0.14 0.16 600 EMZA250ADA331MHA0G
470 JA0 0.14 0.08 850 EMZA250ADA471MJA0G
4.7 D61 0.12 1.35 90 EMZA350ADA4R7MD61G
10 D61 0.12 1.35 90 EMZA350ADA100MD61G
10 E61 0.12 0.70 160 EMZA350ADA100ME61G
22 E61 0.12 0.70 160 EMZA350ADA220ME61G
33 F61 0.12 0.36 240 EMZA350ADA330MF61G
35
47 F61 0.12 0.36 240 EMZA350ADA470MF61G
100 F80 0.12 0.34 280 EMZA350ADA101MF80G
100 HA0 0.12 0.16 600 EMZA350ADA101MHA0G
220 HA0 0.12 0.16 600 EMZA350ADA221MHA0G
330 JA0 0.12 0.08 850 EMZA350ADA331MJA0G
4.7 D61 0.10 2.90 60 EMZA500ADA4R7MD61G
10 E61 0.10 1.52 85 EMZA500ADA100ME61G
10 F61 0.10 0.88 165 EMZA500ADA100MF61G
22 F61 0.10 0.88 165 EMZA500ADA220MF61G
50
33 F80 0.10 0.68 195 EMZA500ADA330MF80G
47 F80 0.10 0.68 195 EMZA500ADA470MF80G
100 HA0 0.10 0.34 350 EMZA500ADA101MHA0G
220 JA0 0.10 0.18 670 EMZA500ADA221MJA0G
4.7 E61 0.08 4.8 50 EMZA630ADA4R7ME61G
10 F61 0.08 2.2 80 EMZA630ADA100MF61G
22 F80 0.08 2.1 120 EMZA630ADA220MF80G
63 33 HA0 0.08 0.70 250 EMZA630ADA330MHA0G
47 HA0 0.08 0.70 250 EMZA630ADA470MHA0G
68 HA0 0.08 0.70 250 EMZA630ADA680MHA0G
100 JA0 0.08 0.45 400 EMZA630ADA101MJA0G
3.3 E61 0.08 5.0 25 EMZA800ADA3R3ME61G
4.7 F61 0.08 3.0 40 EMZA800ADA4R7MF61G
10 F80 0.08 2.4 60 EMZA800ADA100MF80G
80
22 HA0 0.08 1.3 130 EMZA800ADA220MHA0G
33 HA0 0.08 1.3 130 EMZA800ADA330MHA0G
47 JA0 0.08 0.70 200 EMZA800ADA470MJA0G
(2/2) CAT. No. E1001K
