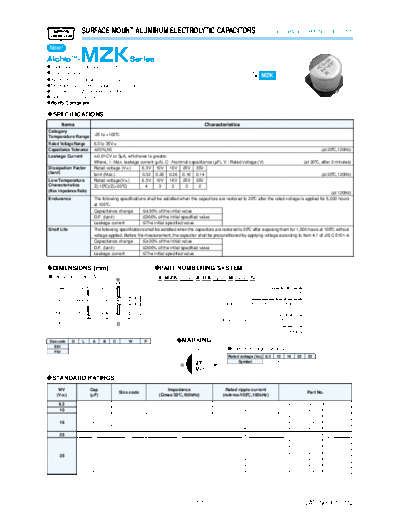

Image preview - the first page of the document
>> Download mzk documenatation <<
Text preview - extract from the document
SURFACE MOUNT ALUMINUM ELECTROLYTIC CAPACITORS Low impedance, 5000-hours-life, 105C
New!
@Endurance : 5,000 hours at 105C
@Low impedance Longer life
MZK
MVY
@Rated voltage range : 6.3 to 35V
@Nominal capacitance range : 10 to 150MF
@Suitable for high reliability products
@Solvent resistant type
@RoHS Compliant
?SPECIFICATIONS
Items Characteristics
Category
Temperature Range -25 to +105C
Rated Voltage Range 6.3 to 35Vdc
Capacitance Tolerance P20%(M) (at 20C,120Hz)
Leakage Current I=0.01CV or 3MA, whichever is greater
Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V) (at 20C, after 2 minutes)
Dissipation Factor Rated voltage (Vdc) 6.3V 10V 16V 25V 35V
(tane) tanE (Max.) 0.32 0.28 0.26 0.16 0.14 (at 20C,120Hz)
Low Temperature Rated voltage(Vdc) 6.3V 10V 16V 25V 35V
Characteristics Z(-10C)/Z(+20C) 4 3 2 2 2
(Max. Impedance Ratio) (at 120Hz)
Endurance The following specifications shall be satisfied when the capacitors are restored to 20C after the rated voltage is applied for 5,000 hours
at 105C.
Capacitance change [P30% of the initial value
D.F. (tanE) [300% of the initial specified value
Leakage current [The initial specified value
Shelf Life The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 1,000 hours at 105C without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Capacitance change [P30% of the initial value
D.F. (tanE) [300% of the initial specified value
Leakage current [The initial specified value
?DIMENSIONS [mm] ?PART NUMBERING SYSTEM
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
@Terminal Code : A E MZK AAA A DA AAA M AAA G
W Supplement code
Size code
FDP0.5
CP0.2
BP0.2
Capacitance tolerance code
P
Capacitance code (ex. 47MF:470,100MF:101)
Taping code
Terminal code
0.3max. AP0.2 Voltage code (ex. 6.3V:6R3,10V:100,35V:350)
LP0.3 Series code
Category
Size code D L A B C W P ?MARKING
E61 5 5.8 5.3 5.3 5.9 0.5 to 0.8 1.4
F61 6.3 5.8 6.6 6.6 7.2 0.5 to 0.8 1.9
EX) 35V47MF @Rated voltage symbol
9C Rated voltage (Vdc) 6.3 10 16 25 35
Symbol j A C E V
47
V ZK
?STANDARD RATINGS
WV Cap Impedance Rated ripple current
Size code Part No.
(Vdc) (mF) (omax/20c,100kHz) (mArms/105c,100kHz)
6.3 100 E61 2.2 95 EMZK6R3ADA101ME61G
10 150 F61 1.1 140 EMZK100ADA151MF61G
33 E61 2.2 95 EMZK160ADA330ME61G
16 47 E61 2.2 95 EMZK160ADA470ME61G
100 F61 1.1 140 EMZK160ADA101MF61G
25 68 F61 1.1 140 EMZK250ADA680MF61G
10 E61 2.2 95 EMZK350ADA100ME61G
10 F61 1.1 140 EMZK350ADA100MF61G
22 E61 2.2 95 EMZK350ADA220ME61G
35
22 F61 1.1 140 EMZK350ADA220MF61G
33 F61 1.1 140 EMZK350ADA330MF61G
47 F61 1.1 140 EMZK350ADA470MF61G
(1/1) CAT. No. E1001J
