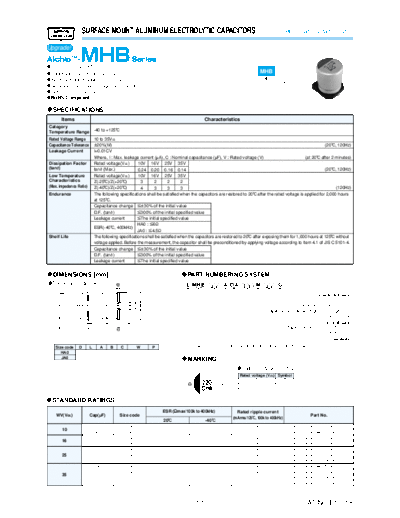

Image preview - the first page of the document
>> Download mhb documenatation <<
Text preview - extract from the document
SURFACE MOUNT ALUMINUM ELECTROLYTIC CAPACITORS High heat resistance, 125C
Upgrade!
@ESR : Less than MVH
@Endurance : 2,000 hours at 125C MHB
@Rated Voltage Range : 10 to 35V Lower ESR
@Nominal capacitance range : 47 to 470MF MVH
@Solvent resistant type
@RoHS Compliant
?SPECIFICATIONS
Items Characteristics
Category
Temperature Range -40 to +125C
Rated Voltage Range 10 to 35Vdc
Capacitance Tolerance P20%(M) (20C, 120Hz)
Leakage Current I=0.01CV
Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V) (at 20C after 2 minutes)
Dissipation Factor Rated voltage(Vdc) 10V 16V 25V 35V
(tane) tanE (Max.) 0.24 0.20 0.16 0.14 (20C, 120Hz)
Low Temperature Rated voltage(Vdc) 10V 16V 25V 35V
Characteristics Z(-25C)/Z(+20C) 3 2 2 2
(Max. impedance Ratio) Z(-40C)/Z(+20C) 4 3 3 3 (120Hz)
Endurance The following specifications shall be satisfied when the capacitors are restored to 20C after the rated voltage is applied for 2,000 hours
at 125C.
Capacitance change [P30% of the initial value
D.F. (tanE) [300% of the initial specified value
Leakage current [The initial specified value
HA0 : [6O
ESR(-40C, 400kHz)
JA0 : [4.5O
Shelf Life The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 1,000 hours at 125C without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Capacitance change [P30% of the initial value
D.F. (tanE) [300% of the initial specified value
Leakage current [The initial specified value
?DIMENSIONS [mm] ?PART NUMBERING SYSTEM
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
@Terminal Code : A E MH B A A A A D A A A A M A A A G
W
Supplement code
Size code
FDP0.5
CP0.2
BP0.2
Capacitance tolerance code
P
Capacitance code (ex. 47MF:470, 470MF:471)
Taping code
Terminal code
0.3max. AP0.2 Voltage code (ex. 10V:100, 35V:350)
LP0.5
Series code
Category
Size code D L A B C W P Please refer to "Product code guide (surface mount type)"
HA0 8 10.0 8.3 8.3 9.0 0.7 to 1.1 3.1
JA0 10 10.0 10.3 10.3 11.0 0.7 to 1.1 4.5
?MARKING
EX) 16V220MF @Rated voltage symbol
5j Rated voltage (Vdc) Symbol
10 A
220 16 C
CHB 25 E
35 V
?STANDARD RATINGS
ESR (omax/100k to 400kHz) Rated ripple current
WV(Vdc) Cap(mF) Size code Part No.
(mArms/125c, 100k to 400kHz)
20c -40c
330 HA0 0.3 3.0 240 EMHB100ADA331MHA0G
10
470 JA0 0.2 2.0 330 EMHB100ADA471MJA0G
100 HA0 0.3 3.0 240 EMHB160ADA101MHA0G
16
220 HA0 0.3 3.0 240 EMHB160ADA221MHA0G
100 HA0 0.3 3.0 240 EMHB250ADA101MHA0G
25 220 HA0 0.3 3.0 240 EMHB250ADA221MHA0G
330 JA0 0.2 2.0 330 EMHB250ADA331MJA0G
47 HA0 0.3 3.0 240 EMHB350ADA470MHA0G
100 HA0 0.3 3.0 240 EMHB350ADA101MHA0G
35
100 JA0 0.2 2.0 330 EMHB350ADA101MJA0G
220 JA0 0.2 2.0 330 EMHB350ADA221MJA0G
(1/1) CAT. No. E1001K
