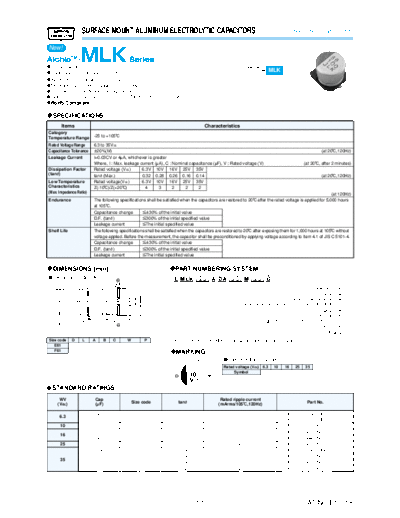

Image preview - the first page of the document
>> Download mlk documenatation <<
Text preview - extract from the document
SURFACE MOUNT ALUMINUM ELECTROLYTIC CAPACITORS 5000-hours-life, 105C
New!
@6.1mm height Longer life
@Endurance : 5,000 hours at 105C
MVL MLK
@Rated voltage range : 6.3 to 35V
@Nominal capacitance range : 4.7 to 100MF
@Suitable to fit for downsized equipment
@Solvent resistant type (see PRECAUTIONS AND GUIDELINES)
@RoHS Compliant
?SPECIFICATIONS
Items Characteristics
Category
Temperature Range -25 to +105C
Rated Voltage Range 6.3 to 35Vdc
Capacitance Tolerance P20%(M) (at 20C,120Hz)
Leakage Current I=0.03CV or 4MA, whichever is greater
Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V) (at 20C, after 2 minutes)
Dissipation Factor Rated voltage (Vdc) 6.3V 10V 16V 25V 35V
(tane) tanE (Max.) 0.32 0.28 0.26 0.16 0.14 (at 20C,120Hz)
Low Temperature Rated voltage(Vdc) 6.3V 10V 16V 25V 35V
Characteristics Z(-10C)/Z(+20C) 4 3 2 2 2
(Max. Impedance Ratio) (at 120Hz)
Endurance The following specifications shall be satisfied when the capacitors are restored to 20C after the rated voltage is applied for 5,000 hours
at 105C.
Capacitance change [P30% of the initial value
D.F. (tanE) [300% of the initial specified value
Leakage current [The initial specified value
Shelf Life The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 1,000 hours at 105C without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Capacitance change [P30% of the initial value
D.F. (tanE) [300% of the initial specified value
Leakage current [The initial specified value
?DIMENSIONS [mm] ?PART NUMBERING SYSTEM
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
@Terminal Code : A E MLK AAA A DA AAA M AAA G
W Supplement code
Size code
FDP0.5
CP0.2
BP0.2
Capacitance tolerance code
P
Capacitance code (ex. 4.7MF:4R7,10MF:100,100MF:101)
Taping code
Terminal code
0.3max. AP0.2 Voltage code (ex. 6.3V:6R3,10V:100,25V:250)
LP0.3 Series code
Category
Size code D L A B C W P Please refer to "Product code guide (surface mount type)"
E61 5 5.8 5.3 5.3 5.9 0.5 to 0.8 1.4
F61 6.3 5.8 6.6 6.6 7.2 0.5 to 0.8 1.9 ?MARKING
EX) 35V10MF @Rated voltage symbol
Rated voltage (Vdc) 6.3 10 16 25 35
9C
Symbol j A C E V
10
V LK
?STANDARD RATINGS
WV Cap Rated ripple current
Size code tane Part No.
(Vdc) (mF) (mArms/105c,120Hz)
47 E61 0.32 36 EMLK6R3ADA470ME61G
6.3
100 F61 0.32 60 EMLK6R3ADA101MF61G
10 33 E61 0.28 35 EMLK100ADA330ME61G
22 E61 0.26 30 EMLK160ADA220ME61G
16
47 F61 0.26 50 EMLK160ADA470MF61G
25 33 F61 0.16 48 EMLK250ADA330MF61G
4.7 E61 0.14 19 EMLK350ADA4R7ME61G
10 E61 0.14 25 EMLK350ADA100ME61G
35
10 F61 0.14 30 EMLK350ADA100MF61G
22 F61 0.14 42 EMLK350ADA220MF61G
(1/1) CAT. No. E1001K
