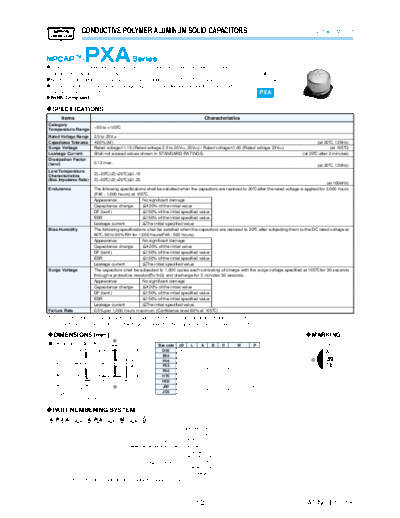

Image preview - the first page of the document
>> Download pxa documenatation <<
Text preview - extract from the document
CONDUCTIVE POLYMER ALUMINUM SOLID CAPACITORS Surface Mount
@Super low ESR, impedance and high heat resistance have been obtained by using PXE
conductive polymer as electrolyte
@Rated voltage range : 2.5 to 25Vdc, case size range : F4B5.2L to F10B12.2L Lower ESR
@Suitable for DC-DC converters, voltage regulators and decoupling applications used on
computer motherboards etc. PXA
@RoHS Compliant
?SPECIFICATIONS
Items Characteristics
Category
Temperature Range -55 to +105C
Rated Voltage Range 2.5 to 25Vdc
Capacitance Tolerance P20% (M) (at 20C, 120Hz)
Surge Voltage Rated voltageB1.15 (Rated voltage 2.5 to 20Vdc, 25Vdc) / Rated voltageB1.00 (Rated voltage 23Vdc) (at 105C)
Leakage Current Shall not exceed values shown in STANDARD RATINGS. (at 20C after 2 minutes)
Dissipation Factor
(tane) 0.12 max.
(at 20C, 120Hz)
Low Temperature
Characteristics Z(-25C)/Z(+20C)[1.15
(Max. Impedance Ratio) Z(-55C)/Z(+20C)[1.25
(at 100kHz)
Endurance The following specifications shall be satisfied when the capacitors are restored to 20C after the rated voltage is applied for 2,000 hours
(F46 : 1,000 hours) at 105C.
Appearance No significant damage
Capacitance change [P20% of the initial value
DF (tanE) [150% of the initial specified value
ESR [150% of the initial specified value
Leakage current [The initial specified value
Bias Humidity The following specifications shall be satisfied when the capacitors are restored to 20C after subjecting them to the DC rated voltage at
60C, 90 to 95% RH for 1,000 hours(F46 : 500 hours).
Appearance No significant damage
Capacitance change [P20% of the initial value
DF (tanE) [150% of the initial specified value
ESR [150% of the initial specified value
Leakage current [The initial specified value
Surge Voltage The capacitors shall be subjected to 1,000 cycles each consisting of charge with the surge voltage specified at 105C for 30 seconds
through a protective resistor(R=1kO) and discharge for 5 minutes 30 seconds.
Appearance No significant damage
Capacitance change [P20% of the initial value
DF (tanE) [150% of the initial specified value
ESR [150% of the initial specified value
Leakage current [The initial specified value
Failure Rate 0.5% per 1,000 hours maximum (Confidence level 60% at 105C)
*Note : If any doubt arises, measure the leakage current after the following voltage treatment.
Voltage treatment : DC rated voltage is applied to the capacitors for 120 minutes at 105C.
?DIMENSIONS [mm] ?MARKING
@Terminal Code : A Size code fD L A B C W P EX) 16V39MF
W
D55 4 5.2 4.3 4.3 5.1 0.5 to 0.8 1.0
E60 5 5.7 5.3 5.3 5.9 0.5 to 0.8 1.4
A15L
39
FDP0.5
CP0.2
BP0.2
F46 6.3 4.5 6.6 6.6 7.2 0.5 to 0.8 1.9
P
F55 6.3 5.2 6.6 6.6 7.2 0.5 to 0.8 1.9 16V
F60 6.3 5.7 6.6 6.6 7.2 0.5 to 0.8 1.9
H70 8 6.7 8.3 8.3 9.0 0.7 to 1.1 3.1
0.3max. HC0 8 12.0 8.3 8.3 9.0 0.7 to 1.1 3.1
AP0.2
LP0.3 (Note) J80 10 7.7 10.3 10.3 11.0 0.7 to 1.1 4.5
Note : L+0.1/-0.2 for F46 JC0 10 12.2 10.3 10.3 11.0 0.7 to 1.1 4.5
LP0.5 for HC0 and JC0
?PART NUMBERING SYSTEM
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
A PXA AAA A RA AAA M AAA G
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex. 10MF:100,100MF:101)
Taping code
Terminal code
Voltage code (ex. 6.3V:6R3,10V:100)
Series code
Category
Please refer to "Product code guide (conductive polymer type)"
(1/2) CAT. No. E1001K
CONDUCTIVE POLYMER ALUMINUM SOLID CAPACITORS Surface Mount
?STANDARD RATINGS
Leakage Leakage
Rated ripple Rated ripple
current ESR current ESR
WV Cap Size current WV Cap Size current
(mAmax/ (momax/ 20c, Part No. (mAmax/ (momax/ 20c, Part No.
(Vdc) (mF) code (mArms/105c, (Vdc) (mF) code (mArms/105c,
after 100k to 300kHz) after 100k to 300kHz)
100kHz) 100kHz)
2 min.) 2 min.)
220 F55 110 25 2,500 APXA2R5ARA221MF55G 4.7 D55 24.0 240 670 APXA100ARA4R7MD55G
220 F60 110 25 2,500 APXA2R5ARA221MF60G 6.8 D55 34.0 240 670 APXA100ARA6R8MD55G
560 H70 280 23 3,100 APXA2R5ARA561MH70G 10 D55 50.0 220 700 APXA100ARA100MD55G
2.5
680 HC0 340 12 4,770 APXA2R5ARA681MHC0G 15 D55 75.0 200 740 APXA100ARA150MD55G
1,000 J80 500 19 4,240 APXA2R5ARA102MJ80G 33 E60 66.0 40 1,270 APXA100ARA330ME60G
1,500 JC0 750 10 5,500 APXA2R5ARA152MJC0G 47 E60 94.0 40 1,270 APXA100ARA470ME60G
33 D55 66.0 200 740 APXA4R0ARA330MD55G 47 F46 235 41 1,560 APXA100ARA470MF46G
100 F55 80.0 26 2,450 APXA4R0ARA101MF55G 47 F60 94.0 31 2,250 APXA100ARA470MF60G
100 F60 80.0 26 2,450 APXA4R0ARA101MF60G 56 F55 112 31 2,250 APXA100ARA560MF55G
10
120 F46 240 38 1,710 APXA4R0ARA121MF46G 56 F60 112 31 2,250 APXA100ARA560MF60G
150 E60 120 30 1,490 APXA4R0ARA151ME60G 120 H70 240 27 2,800 APXA100ARA121MH70G
150 F55 120 26 2,450 APXA4R0ARA151MF55G 150 H70 300 27 2,800 APXA100ARA151MH70G
150 F60 120 26 2,450 APXA4R0ARA151MF60G 270 HC0 540 14 4,420 APXA100ARA271MHC0G
4
220 H70 176 25 3,020 APXA4R0ARA221MH70G 270 J80 540 24 3,770 APXA100ARA271MJ80G
330 H70 264 25 3,020 APXA4R0ARA331MH70G 330 HC0 660 14 4,420 APXA100ARA331MHC0G
470 J80 376 20 4,130 APXA4R0ARA471MJ80G 330 J80 660 24 3,770 APXA100ARA331MJ80G
560 HC0 448 12 4,770 APXA4R0ARA561MHC0G 470 JC0 940 12 5,300 APXA100ARA471MJC0G
680 J80 544 20 4,130 APXA4R0ARA681MJ80G 560 JC0 1,120 12 5,300 APXA100ARA561MJC0G
820 JC0 656 10 5,500 APXA4R0ARA821MJC0G 3.3 D55 26.0 260 660 APXA160ARA3R3MD55G
1,200 JC0 960 10 5,500 APXA4R0ARA122MJC0G 22 E60 70.4 45 1,210 APXA160ARA220ME60G
22 D55 69.0 200 740 APXA6R3ARA220MD55G 22 F46 176 45 1,490 APXA160ARA220MF46G
47 E60 59.2 35 1,380 APXA6R3ARA470ME60G 33 F60 106 37 2,050 APXA160ARA330MF60G
68 F60 85.6 27 2,400 APXA6R3ARA680MF60G 39 F55 125 37 2,050 APXA160ARA390MF55G
82 F46 267 40 1,670 APXA6R3ARA820MF46G 39 F60 125 37 2,050 APXA160ARA390MF60G
16
82 F55 103 27 2,400 APXA6R3ARA820MF55G 82 H70 262 30 2,700 APXA160ARA820MH70G
82 F60 103 27 2,400 APXA6R3ARA820MF60G 150 J80 480 26 3,430 APXA160ARA151MJ80G
100 E60 126 35 1,380 APXA6R3ARA101ME60G 180 HC0 576 16 4,360 APXA160ARA181MHC0G
100 F46 315 40 1,670 APXA6R3ARA101MF46G 180 J80 576 26 3,430 APXA160ARA181MJ80G
100 F55 126 27 2,400 APXA6R3ARA101MF55G 220 JC0 704 14 5,050 APXA160ARA221MJC0G
6.3 100 F60 126 27 2,400 APXA6R3ARA101MF60G 330 JC0 1,050 14 5,050 APXA160ARA331MJC0G
120 F60 151 27 2,400 APXA6R3ARA121MF60G 15 F46 150 57 1,300 APXA200ARA150MF46G
150 H70 189 25 3,020 APXA6R3ARA151MH70G 22 F55 88.0 50 1,650 APXA200ARA220MF55G
220 H70 277 25 3,020 APXA6R3ARA221MH70G 22 F60 88.0 50 1,650 APXA200ARA220MF60G
330 J80 416 20 4,130 APXA6R3ARA331MJ80G 20 39 H70 156 45 2,000 APXA200ARA390MH70G
390 HC0 491 12 4,770 APXA6R3ARA391MHC0G 47 H70 188 45 2,000 APXA200ARA470MH70G
470 HC0 592 12 4,770 APXA6R3ARA471MHC0G 82 J80 328 40 2,500 APXA200ARA820MJ80G
470 J80 592 20 4,130 APXA6R3ARA471MJ80G 150 JC0 600 20 4,320 APXA200ARA151MJC0G
680 JC0 857 10 5,500 APXA6R3ARA681MJC0G 23 15 F46 172 57 1,300 APXA230ARA150MF46G
820 JC0 1,030 10 5,500 APXA6R3ARA821MJC0G 10 F60 125 65 1,500 APXA250ARA100MF60G
25 22 H70 275 50 1,800 APXA250ARA220MH70G
39 J80 488 45 2,100 APXA250ARA390MJ80G
